Technical Parameters
1. Working medium: Water
2. Medium temperature:-5~60ºC
3. Working pressure: 0~8bar
4. Voltage: AC220V/50HZ/DC24V/AC110V/50HZ
5. Body material: Stainless steel, brass, PA, cast iron
6. Response times: 0.2 seconds
7. Coil class: B class
| Products Mode | Thread | Orifice (mm) | CV(mm) | L(mm) | H(MM) | Working Pressure(bar) | Remarks |

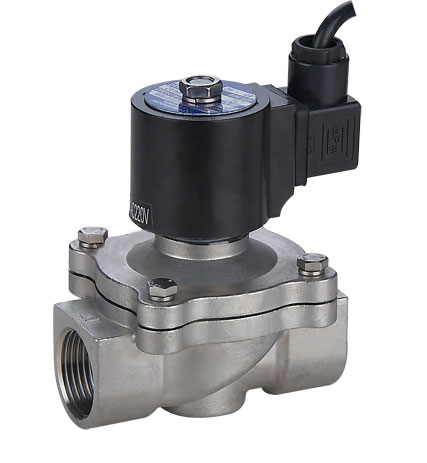

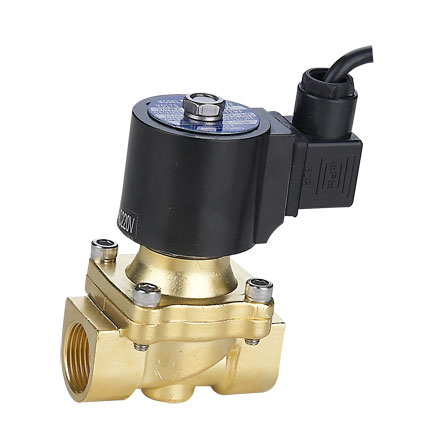

| SLDF-15 | G1/2" | 15 | 3.8 | 60 | 117 | 0-6 | Brass Stainless steel |
| SLDF-20 | G3/4" | 20 | 7.6 | 62 | 123 | ||
| SLDF-25 | G1" | 25 | 12 | 82 | 135 | ||
| SLDF-32 | G1¼" | 32 | 24 | 102 | 155 | ||
| SLDF-40 | G1½" | 40 | 30 | 110 | 170 | ||
| SLDF-50 | G2" | 50 | 48 | 134 | 200 | ||

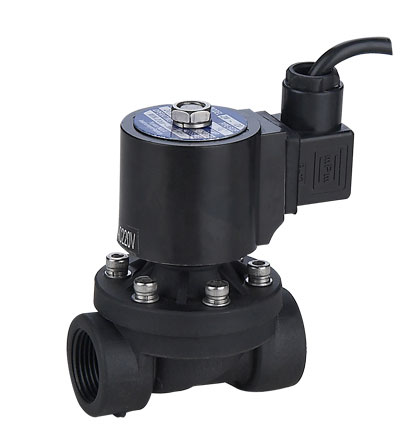

| SLDF-15SL | G1/2" | 15 | 3.8 | 74 | 117 | PA66 | |
| SLDF-20SL | G3/4" | 20 | 7.6 | 70 | 120 | ||
| SLDF-25SL | G1" | 25 | 12 | 87 | 128 | ||
| SLDF-65F | Flange connection | 65 | 53 | 259 | 280 | 0.3-8 | Flange size |
| SLDF-80F | 80 | 82 | 280 | 300 | |||
| SLDF-100F | 100 | 128 | 352 | 350 | |||
| SLDF-125F | 125 | 222 | 430 | 470 | |||
| SLDF-150F | 150 | 292 | 454 | 480 | |||
| SLDF-200F | 200 | 513 | 573 | 590 |
