YSG series large size 2-way bistable self-sustaining pulse solenoid valve DN65~ DN200
Widely used in agriculture automatic irrigation, landscaping, automatic irrigation, drip irrigation and other automatic control. Can also be used for other gases, Hydraulic Control
Working medium:water air liquid
Medium temperature:-5~80℃
sealing material:NBR
Working type:direct current pulse type
Valvebody material:SS304 cast iron
Interface type:flange

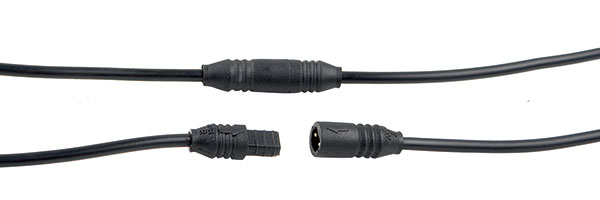

Working voltage:DC2.5~6.5V IP67
Working pressure:0.3~8bar
Coil resistance:25Ω
Minimum current:190mA
Pulse width:≥10ms
Note:

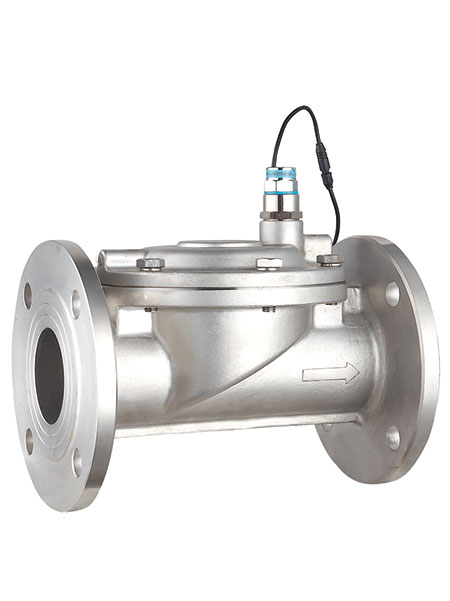

1. Stainless steel valves DN65 ~ DN150 without filter, unworthy manual switch is required with manual switch can be customized

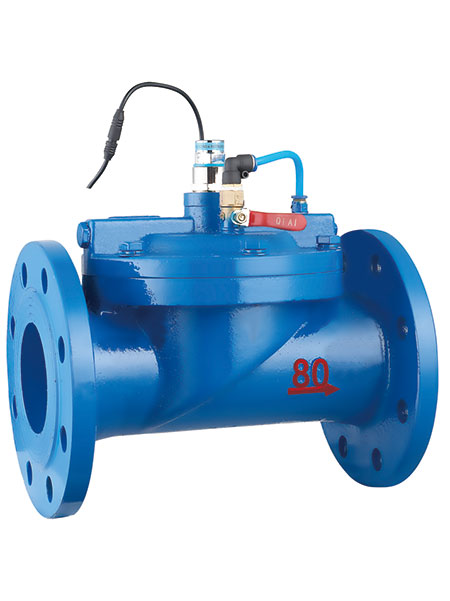

2. Cast iron valves DN65 ~ DN200 with filter and manual switch
YSG | - | 65 | - | J | - | F | - | Rated voltage |
| | | | | | | | | | ||||
model | Thread code | C:castiron | F:flange | DC6V(by default) | ||||
65:65mm | J:ss304 | |||||||
80:80mm | ||||||||
100:100mm | ||||||||
125:125mm | ||||||||
150:150mm | ||||||||
200:200mm |

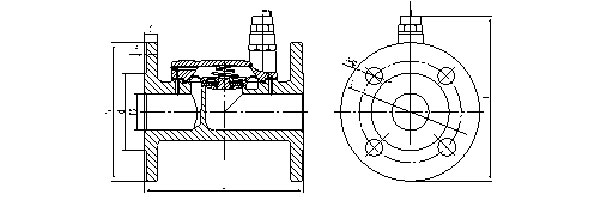

model | L | D | H | K | d | C | f | n-φ | Valvebody material | Weight(Kg) |
YSG-65JF | 256 | 185 | 248 | 145 | 118 | 20 | 3 | 4-φ18 | SS304 | 12.3 |
YSG-80JF | 277 | 200 | 268 | 160 | 132 | 20 | 3 | 8-φ18 | 15.1 | |
YSG-100JF | 350 | 220 | 290 | 180 | 156 | 22 | 3 | 8-φ18 | 23 | |
YSG-150JF | 450 | 285 | 402 | 240 | 211 | 24 | 3 | 8-φ22 | 62 | |
YSG-65CF | 259 | 185 | 277 | 145 | 118 | 20 | 3 | 4-φ18 | castiron | 15 |
YSG-80CF | 278 | 200 | 289 | 160 | 132 | 20 | 3 | 8-φ18 | 17 | |
YSG-100CF | 350 | 220 | 316 | 180 | 156 | 22 | 3 | 8-φ18 | 23 | |
YSG-125CF | 425 | 250 | 398 | 210 | 186 | 22 | 3 | 8-φ18 | 54.5 | |
YSG-150CF | 450 | 285 | 430 | 240 | 211 | 24 | 3 | 8-φ22 | 55 | |
YSG-200CF | 560 | 340 | 516 | 295 | 266 | 24 | 3 | 12-φ22 | 112 | |
YSG-80 | Copper body interface size G3" L×D×H=250×195×200 | Copper | 11.3 |
