The ES series solenoid valves with coils adopt bran-new core technology and Intelligent IC Module.

Features
1. Strong electromagnetic attraction, our coil of solenoid valve is 3 times more powerful than normal coil.
2. Low power consumption, the solenoid coil cost is only 20% of normal coil.
3. Slowly heating-up, the temperature of coil rises very slowly, after this two-port valve working continuously for a long time.
4. Our 2-way solenoid valve has no abnormal noise when it is working under AC voltage.

  • Advantages
  • Different models of ES series low power coil
  • ES-series low power solenoid valve
  • ES-series direct acting low power high pressure solenoid valve

Solenoid valve of ES series is noted for low energy consumption and stable performance. As for this series of valve, the most important thing is that the working temperature should be no more than 80 ℃.

The newly developed low-power coil possesses these following advantages:
1. It can be applied in AC/DC solenoid valve and not change the original valve structure.
2. The coil is able to work under low power, about 20% of the power that commonly-used ones require.
3. This advanced coil provides good heat dissipation, even for long time work.
4. A temperature lower than 40℃ leads to long service life of the coil.
5. It has strong electromagnetic attraction, about 3 times more than normal coils, allowing for huge working pressure.
6. No abnormal noise under AC condition.

ES01-410 coil

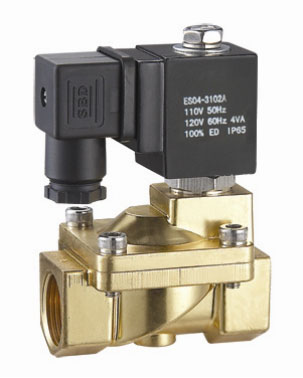

ES04-310 coil
ES05-450 coil
ES07-710 coil

Ordering Code
Model - Orifice diameter - Thread code - Es - Connection type - Sealing material - Voltage
|||||||
RSP 2 ~ 50mm 06:1/8" ES coil Blank: G-thread Blank: NBR AC220V
DFD 10 ~ 200mm 08:1/4"   T: NPT threadE: EPDM AC110V
2W 2.5 ~ 50mm 10:3/8"   F: Flange V: VITON DC24V
YSE 1 ~ 25mm 15:1/2" DC12V
YSI 15 ~ 50mm 20:3/4"
YSA 15 ~ 50mm 25:1"
2W-SL 15 ~ 50mm 32:11/4"
ZCF-P 15 ~ 50mm 40:11/2"
  50:2”

ES-series Low Power Coil V.S. Normal Coil
Coil type Parameters Normal coil ES-series low power coil
orifice diameter 3.0mm 3.0mm
Power 22VA/13W 3VA/3W
Max. working pressure 15bar 100bar
Working temperature ≤80℃ ≤40℃
Noise (Under AC condition) Yes No
Lifespan ≤2 million times ≥6 million times
DFD-25ES
model:DFD-series
voltage:AC220/110V 3VA;
DC24V 3W
RSP-20ES
model:RSP-series
voltage:AC220/110V 3VA
DC24V 3W
2W-15~25ES
model:2W-series semi direct acting
voltage:AC220/110V 4VA
DC24V 3W
2W-40ES
model:2W-series semi direct acting
voltage:AC220/110V 50/60Hz 6VA
DC24V 4W
2W-025-08ES
model:2W-series direct acting
voltage:AC220/110V 50/60Hz 3VA
DC24V 3W
2W-20SL-ES
model:2W-SL plastic series
voltage:AC220/110V 50/60Hz 4VA
DC24V 3W
YSA-40ES
model:YSA-series
voltage:AC220V/110V 3VA
DC24V 3W
YSE-25ES
model:YSE-series
voltage:AC220V/110V 6VA
DC24V 4W
YSI-25ES
model: YSI-series
voltage: AC220V/110V 6VA
DC24V 4W
ESA
ESB

Applicable medium: water, liquid, air, light oil (viscosity≤20cst) ST
Working temperature: -10~80℃
Working type: Direct acting (NC/NO)
Valve material: SS304
Sealing material: NC: PTFE NO: VITON
Connection: G-thread, NPT thread
Working voltage: AC220~240V, AC110V, 50/60Hz, 6VA, DC24/12V 3W IP65 H degree
Options: RC thread, LED light connector

Ordering Code
ESA- Orifice code - Thread code - K- T - Working voltage
| |||||
model 010:1mm 06:1/8" blank:NC blank:G AC220V
015:1.5mm 08:1/4" K:NO T:NPT AC110V
020:2mm 10:3/8" DC24V
025:2.5mm
030:3mm
040:4mm

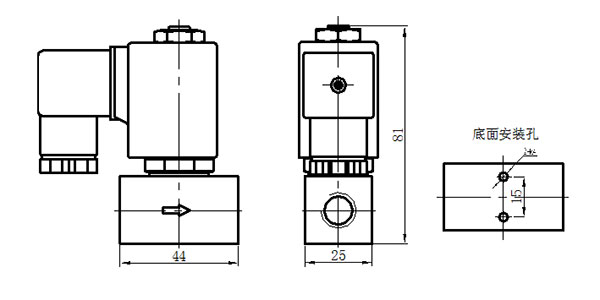

Pictures of ESA-series high pressure solenoid valve (Thread dia.: 1/4" 3/8")

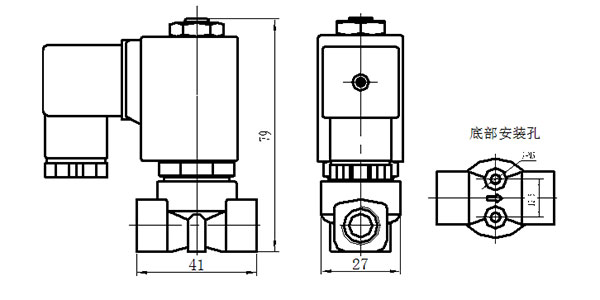

Pictures of ESB-series high pressure solenoid valve (Thread dia.: 1/8" 1/4")

Technical Parameters of ES-series Solenoid Valve
model Interface size orifice size (mm) Cv Working pressure (bar) material weight(Kg)
NC NO
AC220V DC24V AC220V DC24V
ESA-010 1/4" 3/8" 1.0 0.03 0~300 0~120 0~100 0~100 SS304 0.40
ESA-015 1.5 0.08 0~250 0~70 0~50 0~50
ESA-020 2.0 0.15 0~180 0~50 0~25 0~25
ESA-025 2.5 0.2 0~90 0~40 0~15 0~15
ESA-030 3.0 0.25 0~60 0~25 0~10 0~10
ESA-040 4.0 0.6 0~40 0~15 0~5 0~5
ESA-050 5.0 0.9 0~25 0~10
ESB-015 1/8" 1/4" 1.5 0.08 0~250 0~70 0~50 0~50 SS304 0.35
ESB-020 2.0 0.15 0~180 0~50 0~25 0~25
ESB-025 2.5 0.12 0~90 0~40 0~15 0~15
ESB-030 3.0 0.25 0~60 0~25 0~10 0~10
ESB-040 4.0 0.6 0~40 0~15 0~5 0~5
ESB-050 5.0 0.9 0~25 0~10
