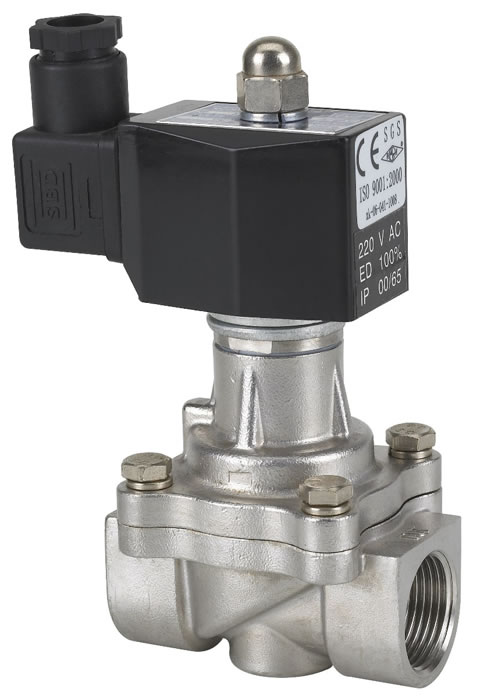

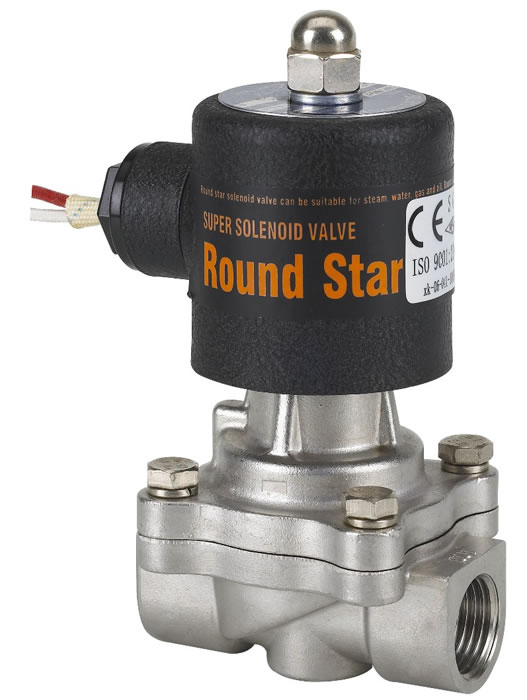

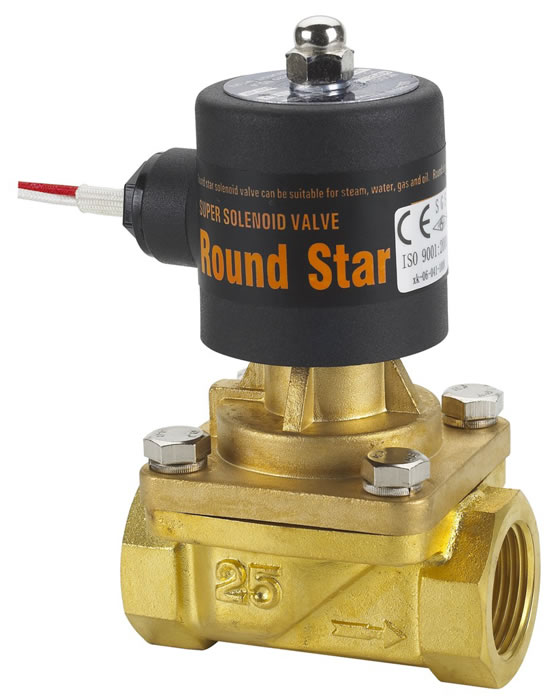

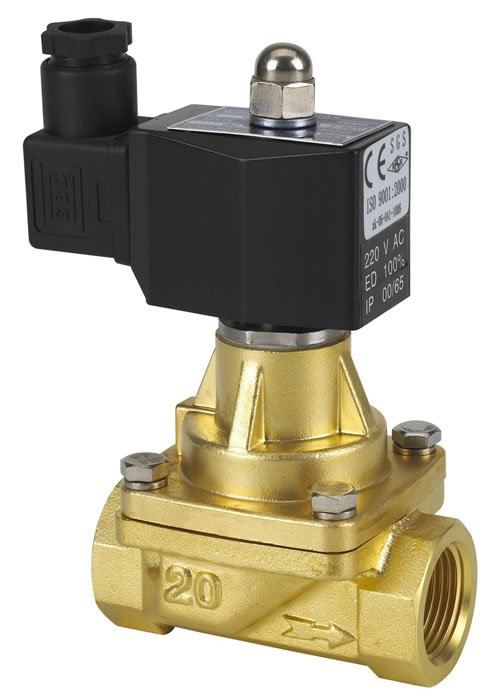

Features of RSPS Solenoid Valve
1. The RSPS solenoid valve is a valve for use with steam, liquid, gas, and oil.
2. The temperature of the medium is between -5 and 180℃.
3. The acting pattern: direct step by step.
4. Working pressure: normally closed: 0-10bar.
5. The RSPS solenoid valve is made with forged brass, precision casting stainless steel or cast brass.
6. It is sealed by the PTFE membrane.
7. Protection degree of the coils: encapsulate coil: IP65.
Special Orders for RSPS Solenoid Valve
We also offer the solenoid valve with special specifications.
1. For use with hot water or constant temperature medium, the solenoid valve can use the VITON seal. You should mark a V on the order. The temperature of the medium can reach 150℃.

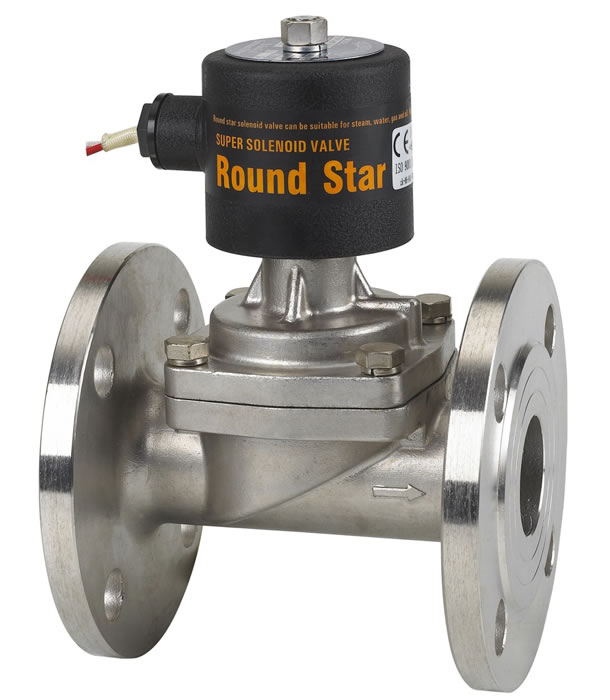

2. Heavy caliber: ф40~ф65. We offer the cast iron coupling flange to joint the solenoid valve, stainless steel valve deck and internals.
3. If you need a solenoid valve with 16kgf/cm2 working pressure, mention it on the order.
| Model | RSPS-15 | RSPS-20 | RSPS-25 | RSPS-32 | RSPS-40 | RSPS-50 | RSPS-20F | RSPS-25F | RSPS-32F | RSPS-40F | RSPS-50F | RSPS-40F | RSPS-50F | RSPS-15JF | RSPS-20JF | RSPS-25JF | RSPS-32JF | RSPS-40JF | RSPS-50JF |

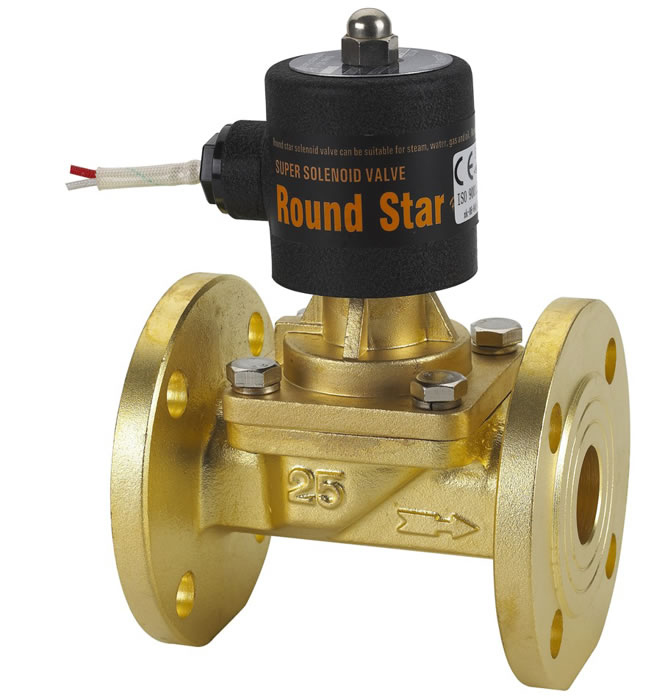

| Joint | G1/2 | G3/4 | G1 | G11/4 | G11/2 | G2 | Copper flanged joint | Cast iron flanged joint | Stainless steel flanged joint | ||||||||||
| Diameter | 15 | 20 | 25 | 32 | 40 | 50 | 20 | 25 | 32 | 40 | 50 | 40 | 50 | 15 | 20 | 25 | 32 | 40 | 50 |
| CV factor | 4.5 | 7.6 | 12 | 22 | 30 | 48 | 7.6 | 12 | 22 | 30 | 48 | 30 | 48 | 4.5 | 7.6 | 12 | 22 | 30 | 48 |
| L mm | 67 | 80 | 92 | 96 | 118 | 150 | 107 | 123 | 135 | 154 | 190 | 150 | 185 | 106 | 106 | 135 | 140 | 145 | 182 |
| H mm | 132 | 148 | 160 | 183 | 191 | 210 | 165 | 195 | 222 | 235 | 250 | 230 | 250 | 164 | 166 | 185 | 220 | 230 | 250 |
| Temperature of medium ℃ | -5 ~180℃ | ||||||||||||||||||
| Operating pressure (bar) | Normally closed: 0~10; | ||||||||||||||||||
| Max compression resistance bar | 20 | ||||||||||||||||||
| Voltage | 220VAC/50HZ 20VA; DC24V 26W; voltage range: ±10%; The solenoid valve in other voltage range can be made to order. | ||||||||||||||||||
YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturer of steam solenoid valve, based in China. We offer various types of products such as steam solenoid valve, pilot solenoid valve, liquid plastic solenoid valve and so on. Our products are high quality and competitively priced. We can complete the full chain of manufacturing high pressure solenoid valve, irons solenoid valve, etc. right here in China. Our lower manufacturing cost can save your purchasing cost. A more detailed description of our product is shown on the page.
