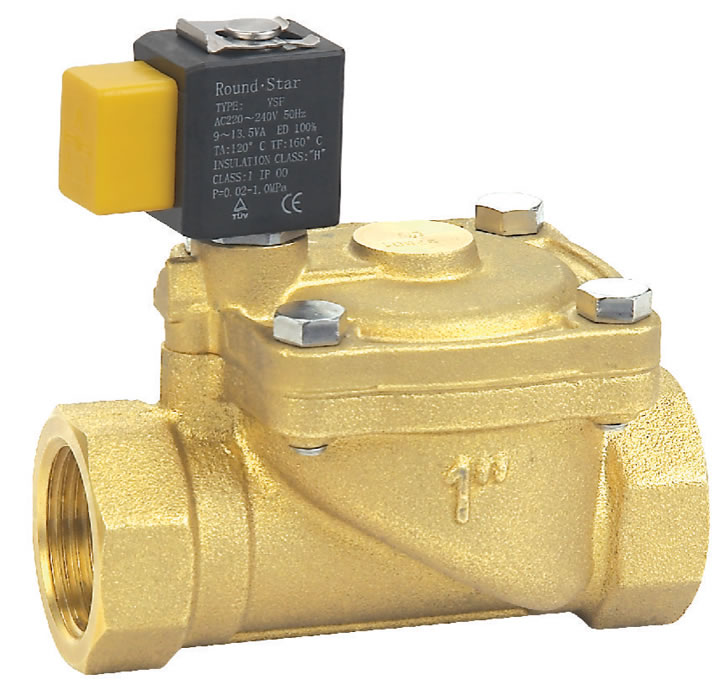

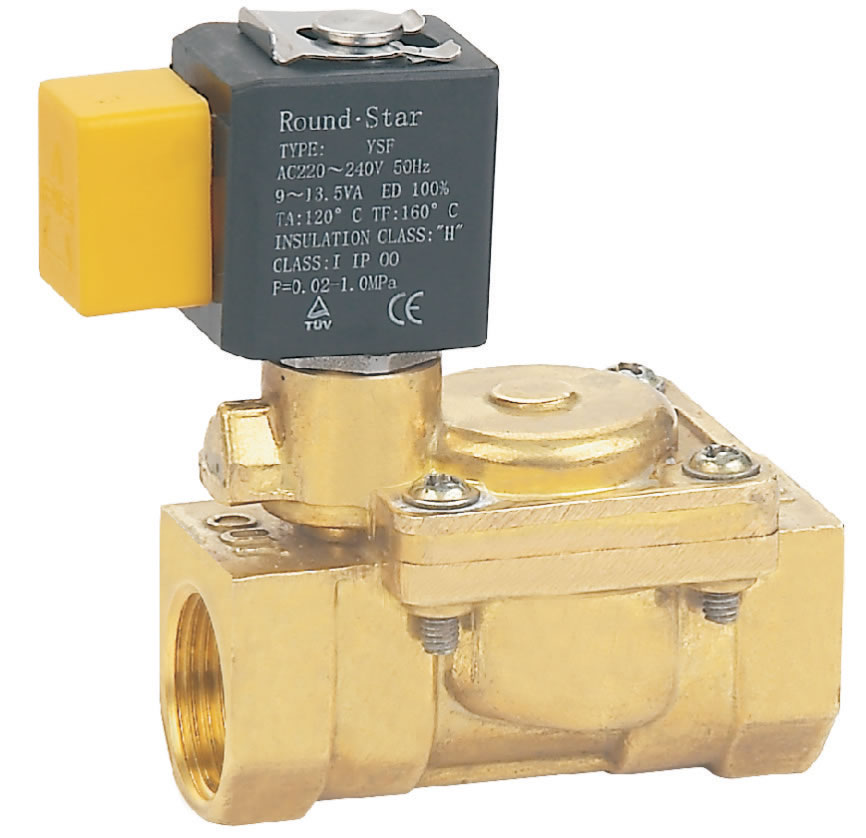

Features of RSQ Low Power Solenoid Valve
1. The RSQ low power solenoid valve is a valve for use with water, liquid, gas and oil.
2. The temperature of the medium is between -10 and 80℃.
3. The acting pattern: pilot type.
4. The RSQ low power solenoid valve uses the normally closed pattern.
5. It is made with the brass HPb59-1.
6. The RSQ low power solenoid valve is sealed by the NBR membrane.
7. Protection degree of the coils: IP65
8. Voltage range: AC -15%~10% DC -5%~10%

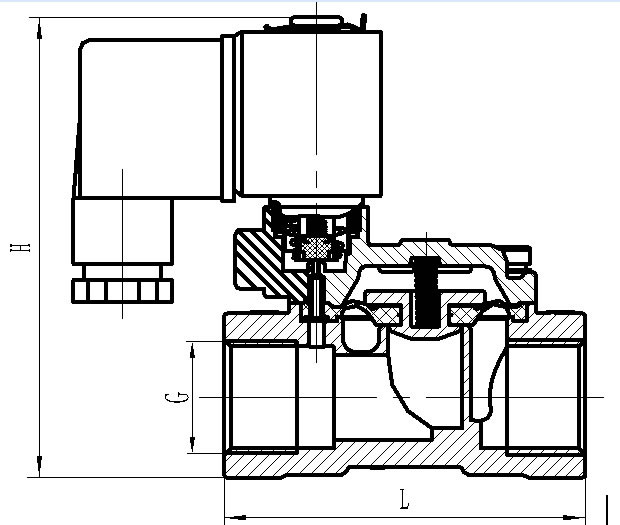

| Product Model | Thread G | Orifice size (mm) | CV Value | L (mm) | H (mm) | Working Pressure (bar) | |
| AC | DC | ||||||
| RSQ-10 | 3/8" | 13.5 | 3.5 | 66 | 82 | 0.3~16 | 0.3~12 |
| RSQ-15 | 1/2" | 13.5 | 3.5 | 66 | 82 | 0.3~16 | 0.3~10 |
| RSQ-20 | 3/4" | 18 | 7.6 | 79 | 89 | 0.3~12 | 0.3~10 |
| RSQ-25 | 1" | 24 | 12 | 105 | 106 | 0.3~12 | 0.3~10 |
| RSQ-32 | 11/4" | 31 | 20 | 130 | 114 | 0.3~10 | 0.3~8 |
| RSQ-40 | 11/2" | 39 | 28 | 145 | 124 | 0.3~10 | 0.3~8 |
| RSQ-50 | 2" | 48.5 | 46 | 175 | 140 | 0.3~10 | 0.3~8 |
Note: The valve is suitable for use in choosing the VITON membrane with the medium at maximum temperature of 120℃.
