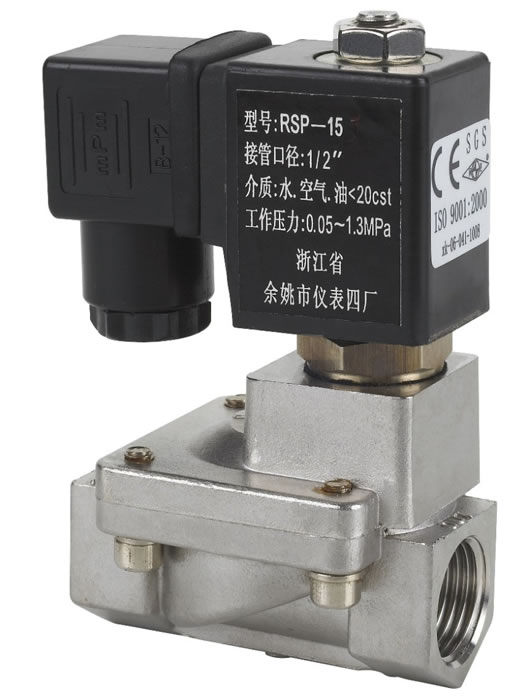

Features of RSP Pilot Solenoid Valve
1. The RSP pilot solenoid valve is a valve for use with the water, liquid, gas and oil.
2. The temperature of the medium is between -10 and 80℃.
3. The acting pattern: pilot type.
4. Working pressure normally closed: 0.5-13bar, normally open: 0.5-8bar.
5. The RSP pilot solenoid valve is made with forged brass or precision casting stainless steel.
6. It is sealed by the NBR membrane.
7. Protection degree of the coils encapsulate coil: IP65.
Special Orders for RSP Pilot Solenoid Valve
We also offer the solenoid valve with special specifications.
1. If you order the solenoid valve with the VITON membrane, you should mark a V on the order form. This valve is for use with mediums at maximum temperature of 130℃.
2. If you prefer the EPDM membrane, then mark an E on the order form. This valve is for use with mediums at maximum temperature of 110℃.
| Model | RSP- 10J |
RSP-10 | RSP-15 | RSP- 20J |
RSP-20 | RSP- 25J |
RSP- 25 |
RSP- 35J |
RSP- 35 |
RSP- 40J |
RSP- 40 |
RSP- 50J |
RSP- 50 |
|
| Screw thread G | 3/8" | 3/8" | 1/2" | 3/4" | 3/4" | 1" | 1" | 1¼" | 1¼" | 1½" | 1½" | 2" | 2" | |
| Hole diameter | mm | 13 | 13 | 13 | 20 | 20 | 25 | 25 | 35 | 35 | 40 | 40 | 50 | 50 |
| Cv | 4.5 | 4.5 | 4.5 | 7.6 | 7.6 | 12 | 12 | 22 | 22 | 30 | 30 | 48 | 48 | |
| L | mm | 66 | 66 | 66 | 75 | 75 | 96 | 92 | 131 | 122 | 128 | 139 | 161 | 168 |
| H | mm | 112 | 112 | 112 | 118 | 118 | 125 | 125 | 137 | 137 | 150 | 150 | 176 | 176 |
| Temperature of the medium | -10-80℃ (130℃) | |||||||||||||
| Working pressure bar | Normally closed: 0.5-13; Normally open: 0.5-8 | |||||||||||||
| Max compression resistance bar | 17 | |||||||||||||
| Voltage | 220V AC/50HZ 17VA; 110V AC/50HZ 13VA; DC24V, 11 W; DC12V 14W; voltage range: ±10%; Solenoid valve in other voltage range can be made to order. | |||||||||||||
Note: The valve is suitable for use in choosing the VITON membrane with the medium at maximum temperature of 120℃.
YUYAO NO.4 INSTRUMENT FACTORY is a China-based pilot solenoid valve manufacturer and supplier. We offer pilot solenoid valve, gas solenoid valve, exhaust solenoid valve and so on. Our high quality products are offered at competitive prices. We can complete the full chain of manufacturing high pressure solenoid valve, steam solenoid valve, etc. right here in China. Our lower manufacturing cost saves your purchasing cost. More details on each of our products are shown on the description page.
