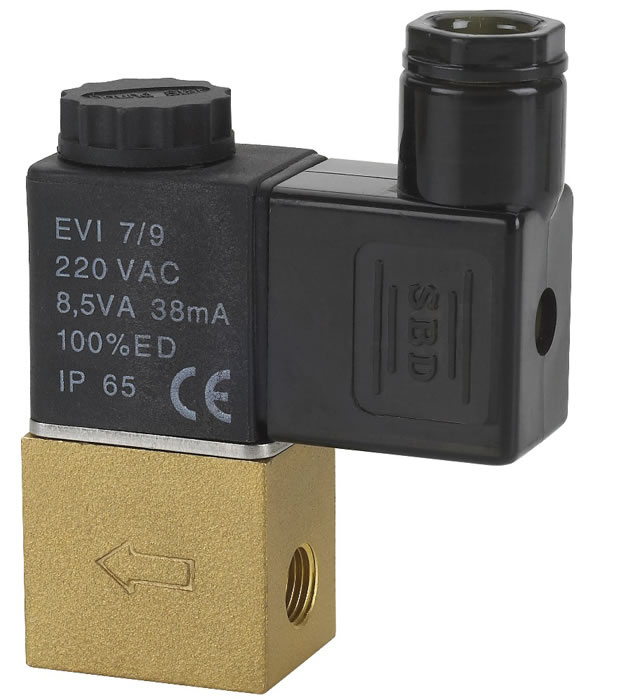

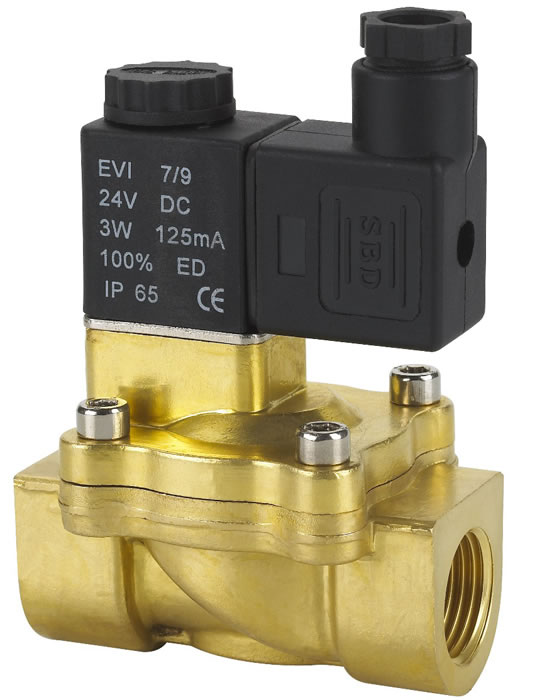

Features of RSV Low Power Solenoid Valve
1. The RSV low power solenoid valve is a valve for use with the water, gas and oil.
2. The temperature of the medium is between -10 and 80℃.
3. The acting pattern: pilot type and direct acting type.
4. Working pressure normally closed: 0.5-8bar.
5. The RSV low power solenoid valve is made with forged brass.
6. It is sealed by the NBR membrane.
7. Protection degree of the coils encapsulate coil: IP65.
Special Orders for RSV Low Power Solenoid Valve
We also offer the solenoid valve with special specifications.
1. If you order the solenoid valve with the VITON membrane, then you should mark a V on the order form. This valve is for use with mediums at maximum temperature of 130℃.
2. If you prefer the EPDM membrane, then mark an E on the order form. This valve is for use with mediums at maximum temperature of 110℃.
| Model | RSV-025-06 | RSV-025-08 | RSV-130-10 | RSV-130-15 | RSV-250-20 | RSV-250-25 | |
| Screw thread G | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | |
| Diameter | mm | 2.5 | 13 | 25 | |||
| Acting pattern | Direct acting | Pilot | |||||
| Cv | 0.23 | 6.2 | 23 | ||||
| L | mm | 30 | 72 | 102 | |||
| H | mm | 76 | 103 | 120 | |||
| Temperature of the medium | -10 ~80℃ | ||||||
| Operating pressure | bar | 0.5 ~8 | |||||
| Max compression resistance | bar | 10 | |||||
| Voltage | 220V AC/50HZ 4.5VA; DC24V 6W; voltage range: -15%~+10%, Solenoid valve in other voltage range can be made to order. | ||||||
YUYAO NO.4 INSTRUMENT FACTORY is a China-based low power solenoid valve manufacturer and supplier. We offer low power solenoid valve, stainless steel solenoid valve, plastic solenoid valve and so on. Our high quality products are offered at competitive prices. We can complete the full chain of manufacturing plate gas solenoid valve, liquid mini solenoid valve, etc. right here in China. Our lower manufacturing cost saves your purchasing cost. More details on each of our products are shown on the description page.
