Widely used in agriculture automatic irrigation, landscaping, automatic irrigation, drip irrigation and other automatic control. Can also be used for other gases, Hydraulic Control
working medium:water、liquid、air
medium temperature:-5~80℃
working type:direct current pulse
valvebody material:reinforced nylon PA66(German)
sealing material:NBR
interface:G thread NPT thread
working voltage:DC2.5~6.5V IP67
coil resistance:25Ω
min current:190mA
pulse width:≥10ms
YSG | - | 25 | - | T | - | voltage |
| | | | | | | | |||
model | thread code | blank:G thread | DC6V(by default) | |||
15:1/2" | T:NPT thread | 9V 12V 24V (can be customized) | ||||
20:3/4" | ||||||
25:1" | ||||||
32:11/4" | ||||||
40:11/2" | ||||||
50:2" |

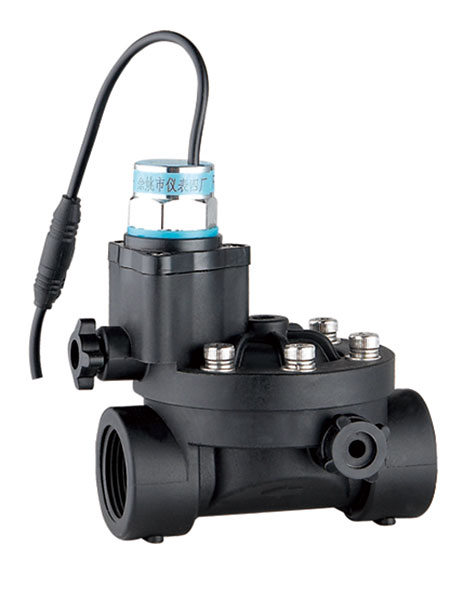

YSG series drawing
1. With a full range of independent water filter can effectively ensure access Medium valve chamber clean, clean. Cleaning, maintenance is simple and convenient.
With manual switch means in the absence of electricity, the counterclockwise rotation of the manual switch, open the valve
2. DN32 ~ 50 with the product further flow regulating means, according toRequirements regulate the flow size.
model | Orifice ( mm ) | interface | Cv | Working pressure (bar) | A×B×C ( mm ) | Normal order code | Weight (Kg) | |
air | Water liquid | Voltage DC6V Plastic material G thread | ||||||
YSG-15 | 15 | 1/2" | 3.5 | 0.3~8 | 0.3~8 | 85×73×126 | YSG–15 – DC6V | 0.4 |
YSG-20 | 20 | 3/4" | 7.6 | 0.3~8 | 0.3~8 | 90×73×128 | YSG–20 - DC6V | 0.4 |
YSG-25 | 25 | 1" | 12 | 0.3~8 | 0.3~8 | 125×90×148 | YSG–25 - DC6V | 0.4 |
YSG-32 | 32 | 11/4" | 20 | 0.3~8 | 0.3~8 | 150×128×173 | YSG–32 - DC6V | 0.7 |
YSG-40 | 40 | 11/2" | 30 | 0.3~8 | 0.3~8 | 151×128×176 | YSG–40 - DC6V | 0.8 |
YSG-50 | 50 | 2" | 48 | 0.3~8 | 0.3~8 | 170×140×190 | YSG–50 - DC6V | 1.0 |

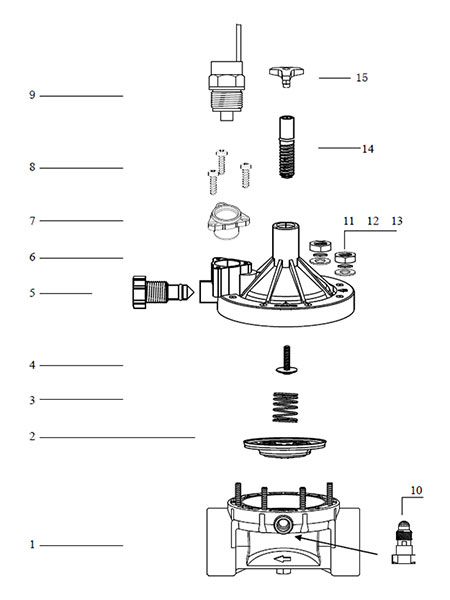

Components:
1.With a full range of independent water filter can effectively ensure accessMedium valve chamber clean, clean. Cleaning, maintenance is simple and convenient.
With manual switch means in the absence of electricity, the counterclockwise rotation of the manual switch, open the valve
2. DN32 ~ 50 with the product further flow regulating means, according to Requirements regulate the flow size.
No. | name |
1 | valvebody |
2 | diaphragm |
3 | spring |
4 | screw |
5 | Manual switch |
6 | Valve cover |
7 | Transform part |
8 | Screw ST3.5 |
9 | Coil |
10 | Inlet switch(with filter) |
11 | Nut bolt |
12 | Cushion ring |
13 | Cushion ring |
14 | flow adjustment switch |
15 | flow adjustment switch |
