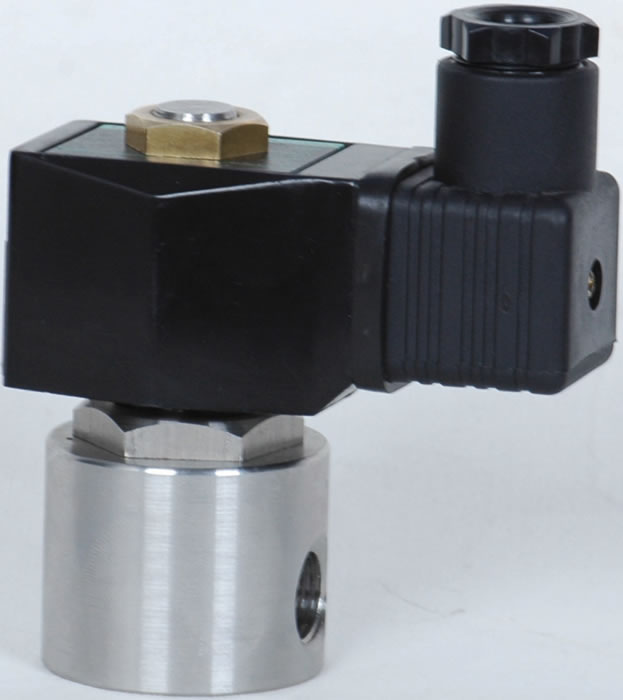

Features of Stainless Steel Solenoid Valve
1. The stainless steel solenoid valve is a valve for use with liquid, gas and steam.
2. The temperature of the medium is equal to or less than 180℃.
3. The stainless steel solenoid valve is made with the stainless steel SUS304.
4. It is sealed by the NBR, VITON or silicon rubber membrane.
5. Protection degree of the coils: IP65.
| Model | UD-02-1 | UD-02-2 | UD-03-4 | UD-02-2K |
| Screw thread | Rc1/4" | Rc1/4" | Rc3/8" | Rc1/4" |
| Diameter | 1.5 | 2 | 3.5 | 2 |
| L (excircle) | 38 | 38 | 45 | 38 |
| H (mm) | 75 | 75 | 85 | 87 |
| Working pressure bar | 0~25 | 0~15 | 0~12 | 0~10 |
| Working pattern | Normally closed | Normally closed | Normally closed | Normally open |
| Voltage | AC220V, 110V, 36V; DC24V | |||
YUYAO NO.4 INSTRUMENT FACTORY is a China-based stainless steel solenoid valve manufacturer and supplier. We offer stainless steel solenoid valve, water air solenoid valve, gas mini solenoid valve and so on. Our high quality products are offered at competitive prices. We can complete the full chain of manufacturing liquid plastic solenoid valve, irons solenoid valve, etc. right here in China. Our lower manufacturing cost saves your purchasing cost. More details on each of our products are shown on the description page.
