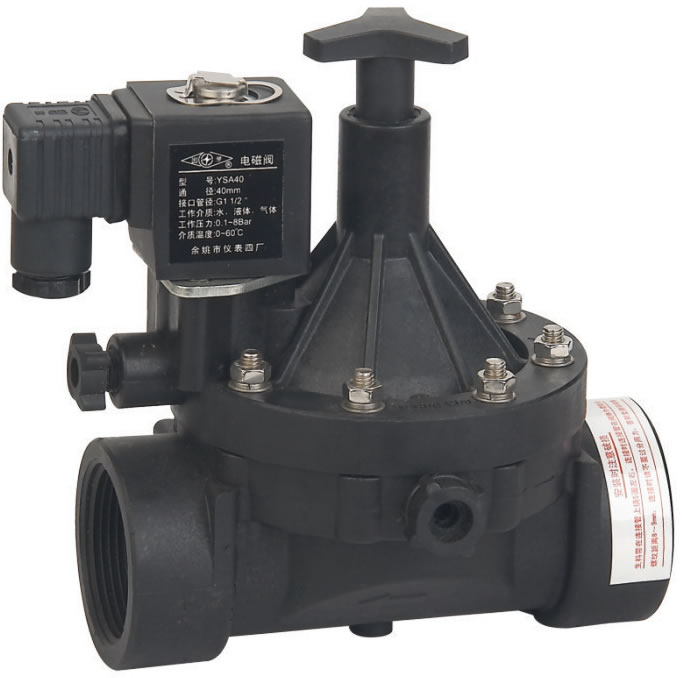

YSA Plastic Solenoid Valve

YSA Plastic Solenoid Valve
Feedback Form

Features of YSA Plastic Solenoid Valve
1. The YSA plastic solenoid valve is a valve for use with water, liquid, gas, etc.
2. The temperature of the medium is between 0 and 60℃.
3. The acting pattern: pilot type.
4. Working pressure: liquid: 0.3-8bar.
5. The YSA plastic solenoid valve is made with the GFPA.
6. It is sealed by the NBR membrane.
7. Protection degree of the coils: IP65.
8. It can be installed with a manual switch which is ideal for the conditions of blackout.
9. The YSA plastic solenoid valve is installed with a filtering net and flow control valve.

Application of YSA Plastic Solenoid Valve
The YSA plastic solenoid valve is a valve for use with water, liquids, gas, agricultural water, pesticides and fertilizers.

Technical Parameters of the YSA Plastic Solenoid Valve (Normally Closed)
Model YSA40 YSA50 YSA-25
Screw thread NPT 1½" 2" 1"
Diameter (mm) 40 50 25
CV factor 28 48 12
L (mm) 151 170 114
H (mm) 130 140 143
Temperature of medium ℃ 0~60
Operating pressure 0.3~8bar
Max compression resistance 12bar
Voltage 220VAC/50HZ, 110VAC/50HZ, DC24V. Solenoid valve in other voltage range can be made to order; voltage range: -15%-10%
Power AC 28VA; DC 12W

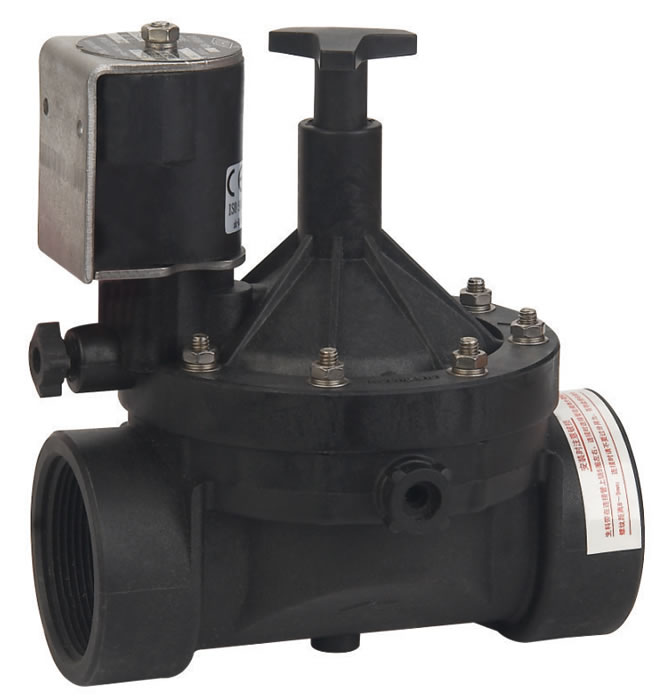

Note: Epoxy encapsulation coil with low power can be made to order.  This kind of coil can be used in extreme conditions like rain and sunlight.  Model: YSB.  Power: 3W.  Photo can refer to YSB-50.

YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturer of plastic solenoid valve, based in China.  We offer various types of products such as plastic solenoid valve, gas solenoid valve, steam solenoid valve and so on.  Our products are high quality and competitively priced.  We can complete the full chain of manufacturing mini solenoid valve, high pressure solenoid valve, etc. right here in China.  Our lower manufacturing cost can save your purchasing cost.  A more detailed description of our product is shown on the page.
