Applicable Medium: high pressure fluid, gas etc.
Medium Temperature: -5 ~ 180℃
Action Mode: pilot-operated
Working Pressure: 6~100bar (under normally closed conditions)
Valve Material: Stainless Steel (precision casting)
Seal Material: PTFE
Features
1. The applicable media for YSI high pressure solenoid valve are limited to the fluid, high pressure gas etc.
2. It adopts the pilot-operated action mode and has stainless connection deaden.
3. It is made in accordance with the standard of high quality magnetic material of Sino-American joint venture and the standard of working pressure PN2.5MPA.
4. The valve body is made of stainless steel flange (ss304j precision casting).
5. This valve with advanced structure and special technique features stable property and high reliability.
Model | Connector G | Diameter | CV Value | Length (mm) | Height (mm) | Working Pressure(bar) |

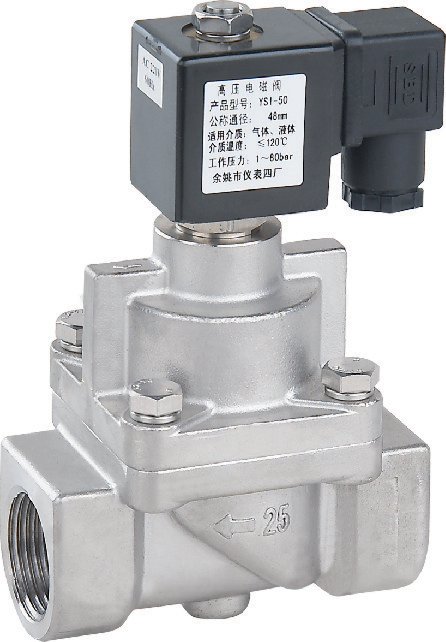

YSI-15 | 1/2 | 15 | 4.2 | 82 | 140 | 6~100 |
YSI-20 | 3/4 | 20 | 7 | 90 | 153 | |
YSI-25 | 1 | 25 | 12 | 100 | 162 | |
YSI-32 | 11/4 | 32 | 22 | 110 | 170 | 6~80 |
YSI-40 | 11/2 | 40 | 30 | 130 | 185 | |
YSI-50 | 2 | 50 | 48 | 150 | 201 | |

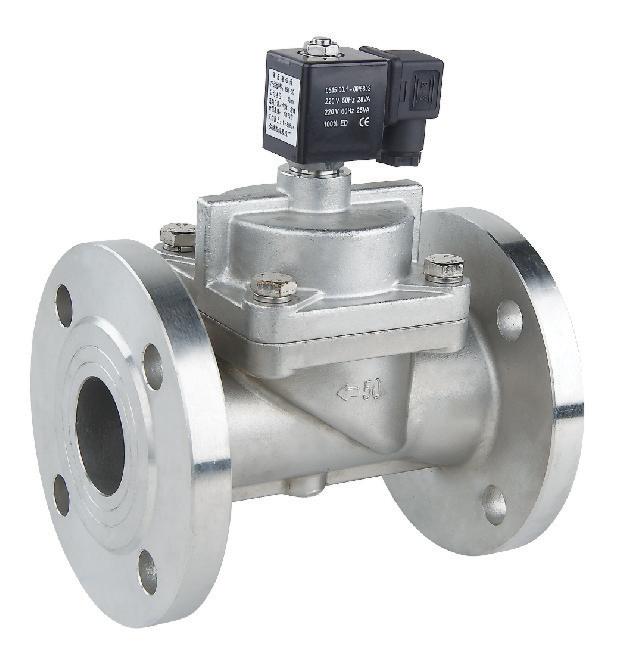

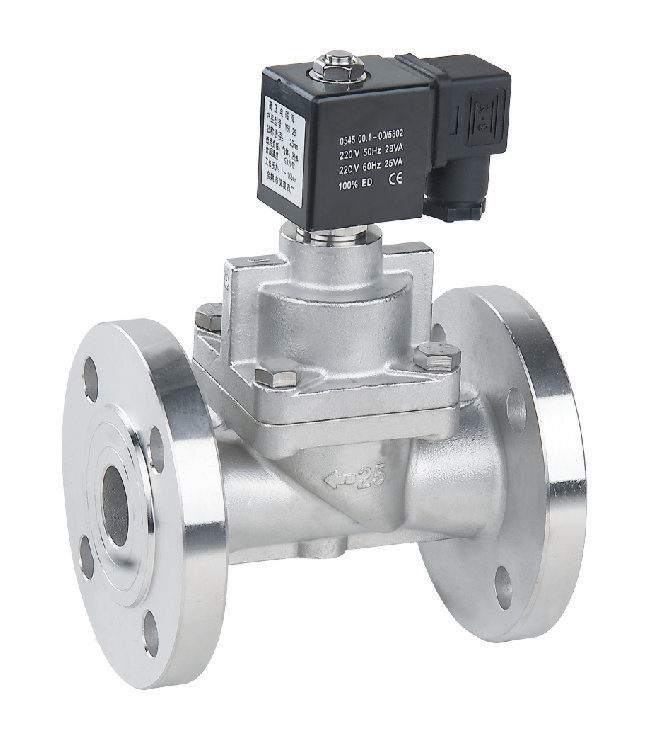

YSI-15JF Stainless Flange | 1/2 | 15 | 4.2 | 120 | 175 | 6~100 |
YSI-20JF Stainless Flange | 3/4 | 20 | 7 | 130 | 188 | |
YSI-50JF Stainless Flange | 1 | 25 | 12 | 140 | 220 | |
YSI-32JF Stainless Flange | 2 | 32 | 22 | 160 | 218 | 6~80 |
YSI-40JF Stainless Flange | 11/2 | 40 | 30 | 170 | 232 | |
YSI-50JF Stainless Flange | 2 | 50 | 48 | 200 | 258 |
