Features of ZW Water Air Solenoid Valve
1. The ZW water air solenoid valve is a valve for use with the water, liquid, gas, oil, tartish and alkali materials.
2. The temperature of the medium is between -5 and 80℃.
3. The acting pattern: direct step by step.
4. Working pressure normally closed: 0-8bar, normally open: 0-6bar.

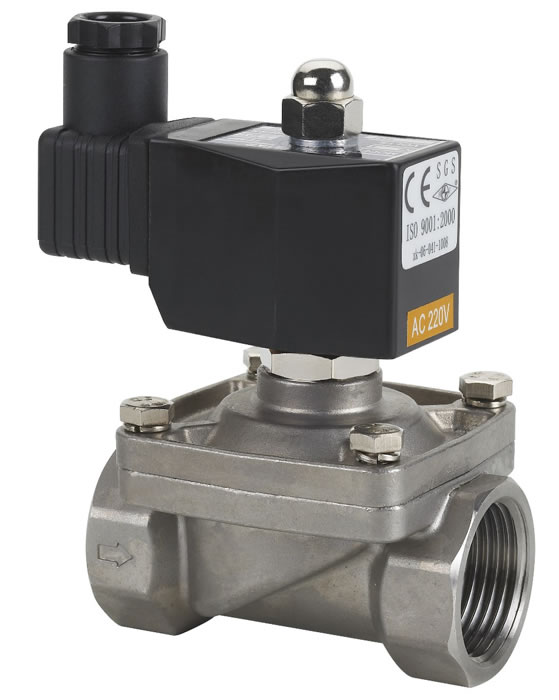

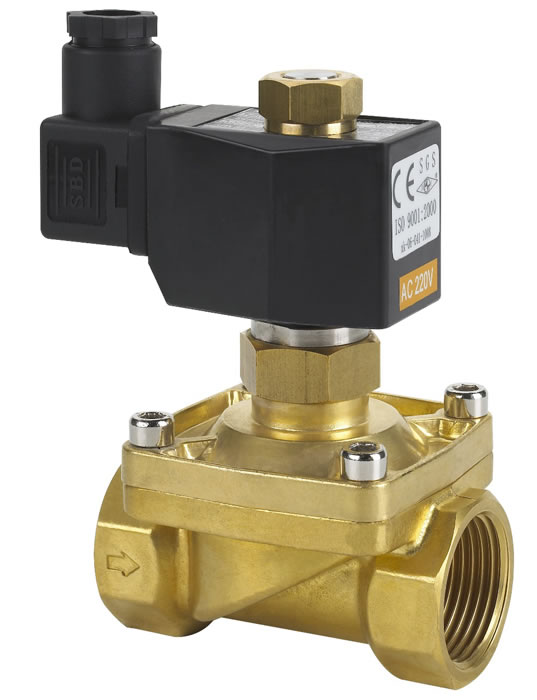

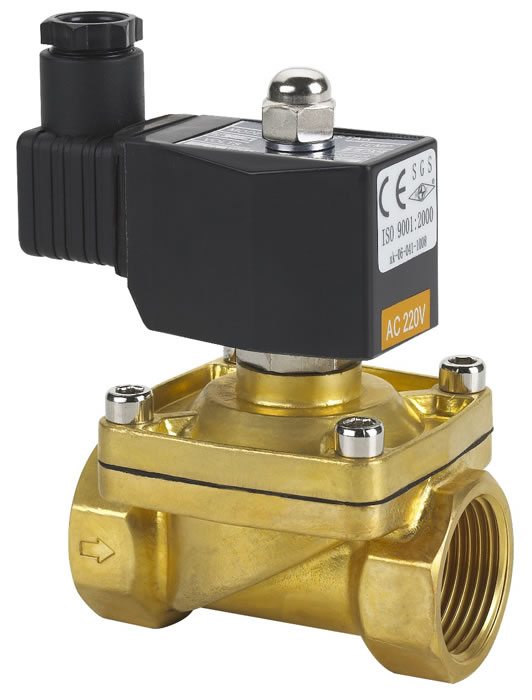

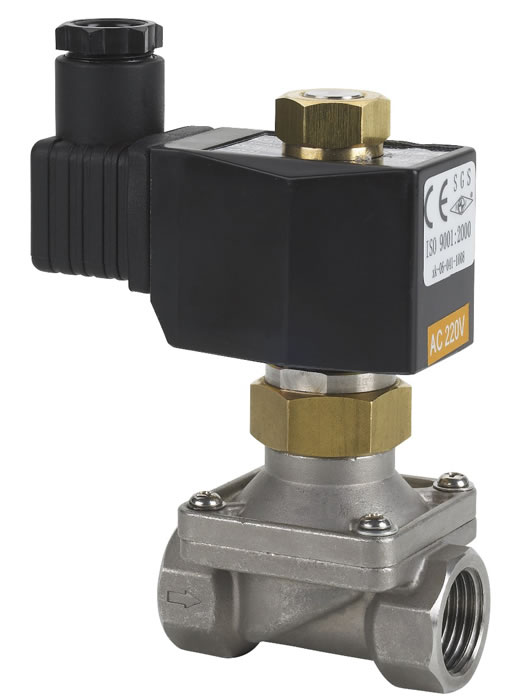

5. The ZW water air solenoid valve is made with forged brass or precision casting stainless steel.
6. It is sealed by the NBR membrane.
7. Protection degree of the coils encapsulate coil: IP65, ironclad coil: IP54.

Special Orders for ZW Water Air Solenoid Valve
We also offer the solenoid valve with special specifications.
1. If you order the solenoid valve with the VITON membrane, you should mark a V on the order form. This valve is for use with mediums at maximum temperature of 130℃.
3. If you prefer the EPDM membrane, then mark an E on the order form. This valve is for use with mediums at maximum temperature of 110℃.
4. We offer flanged joints. Simply mark it out on the order form if you need them.

Technical Parameters of the ZW Water Air Solenoid Valve (Normally Closed)
Model ZW-10 ZW-15 ZW-20 ZW-25 ZW-32 ZW-40 ZW-50
Screw thread G 3/8" 1/2" 3/4" 1" 1¼" 1½" 2"
Diameter mm 15 15 20 25 32 40 50
Cv 2.20 4.8 7.6 12 24 29 48
L mm 60 60 62 82 102 110 134
H mm 111 111 117 124 156 161 176
Temperature of the medium -5 ~80℃ (-10~130℃)
Working pressure Bar Normally closed:0~8; normally open:0~6
Voltage 220VAC/50HZ 22VA; 110VAC/50HZ 22VA; DC24 18W; DC12 17W; voltage range: ±10%, Solenoid valve in other voltage range can be made to order.

YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturer of water air solenoid valve, based in China.  We offer various types of products such as water air solenoid valve, liquid solenoid valve, liquid mini solenoid valve and so on.  Our products are high quality and competitively priced.  We can complete the full chain of manufacturing plastic solenoid valve, steam solenoid valve, etc. right here in China.  Our lower manufacturing cost can save your purchasing cost.  A more detailed description of our product is shown on the page.
