Features of 2W Water Air Solenoid Valve
1. The 2W water air solenoid valve is a valve for use with water, liquid, gas and oil.
2. The temperature of the medium is between -5 and 80℃.
3. The acting pattern: straight or direct step by step type.
4. Working pressure normally closed: 0-10bar, normally open: 0-6bar.

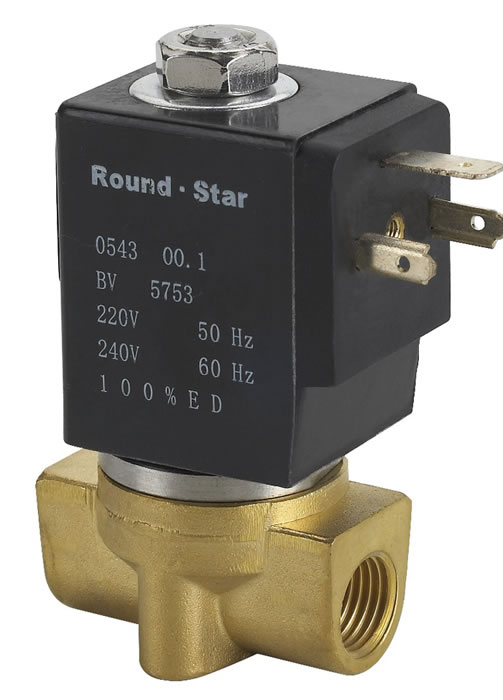

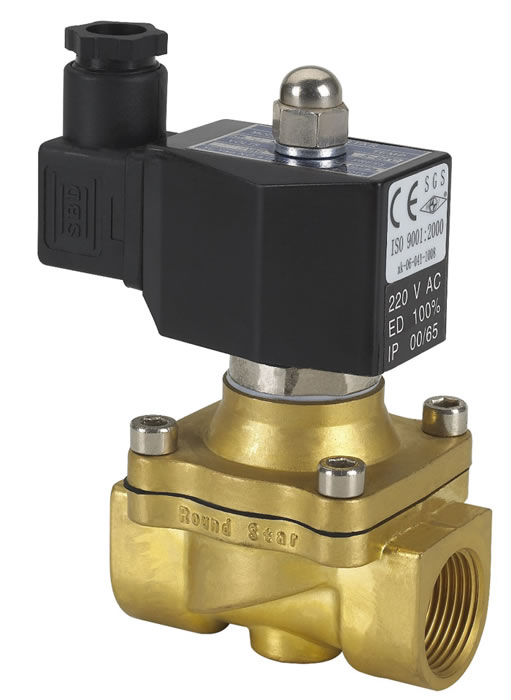

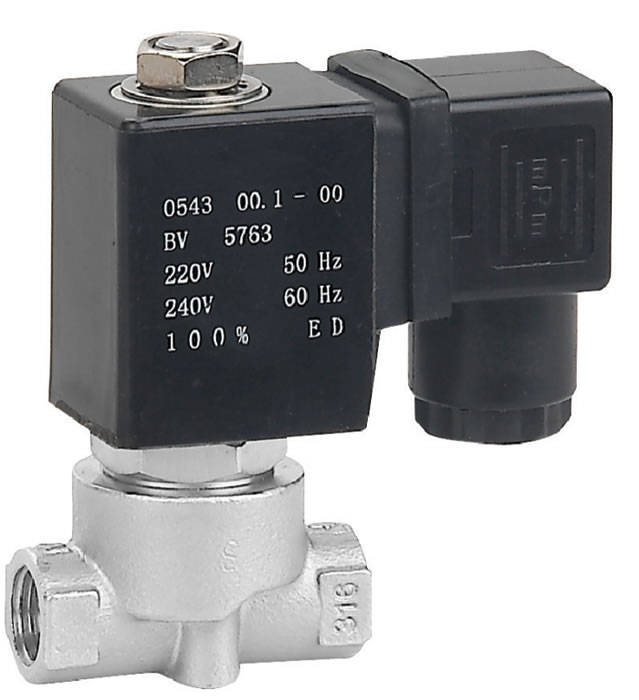

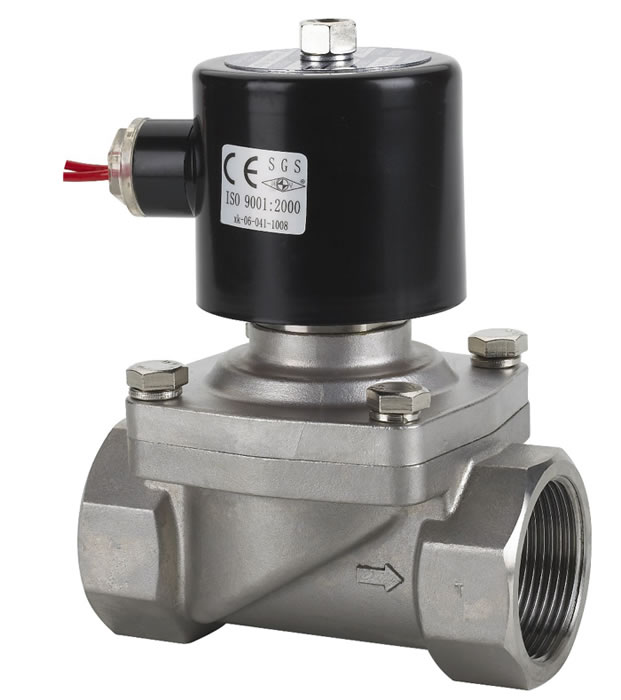

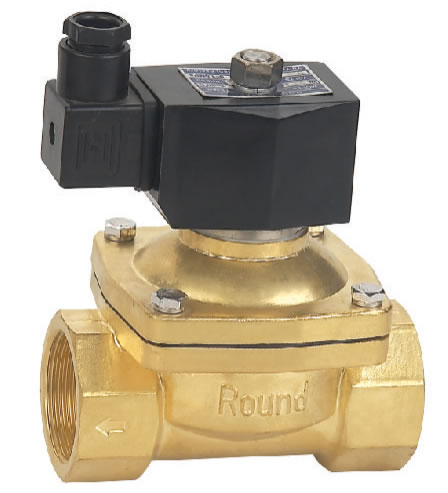

5. The 2W water air solenoid valve is made with forged brass, precision casting stainless steel or precision casting iron.
6. It is sealed by the NBR membrane.
7. Protection degree of the coils encapsulate coil: IP65, ironclad coil: IP54
Special Orders for 2W Water Air Solenoid Valve
We also offer the solenoid valve with special specifications.
1. If you order the 2W water air solenoid valve with the VITON membrane, you should mark a V on the order form. This valve is for use with mediums at maximum temperature of 130℃.
2. If you prefer the EPDM membrane, then mark an E on the order form. This valve is for use with mediums at maximum temperature of 110℃.
3. If the 2W water air solenoid valve is to be used for drinking water and food, mention this on the order. You can choose the silicon rubber membrane.
4. We offer solenoid valves with the working pressure of 12kgf/cm2. You can order it if you need. If you need to install the hand gear, please mention it on the order.

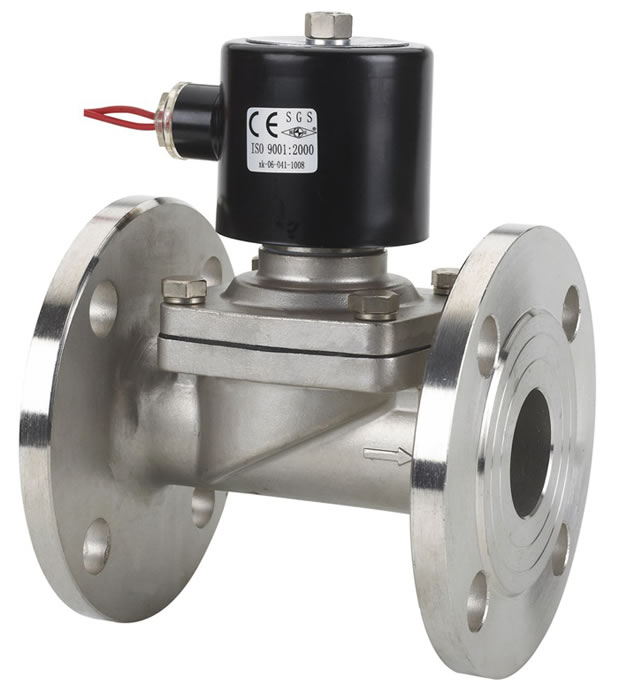

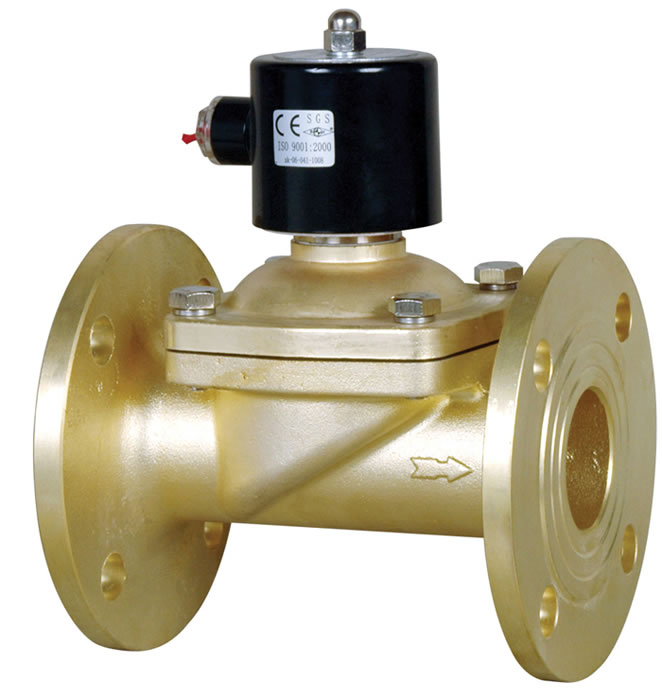

5. We offer stainless steel flanges and copper flanges to joint solenoid valve. Simply mark it out on the order if you need them.
| Model | 2W-025-06 | 2W-025-08 | 2W-040-08 | 2W-040-10 | 2W-160-10 | 2W-160-15 | 2W-200-20 | 2W-250-25 | 2W-350-35 | 2W-400-40 | 2W-500-50 | |
| Screw thread G | 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" | |
| Diameter | mm | 2.5 | 4 | 16 | 20 | 25 | 35 | 40 | 50 | |||
| Working pattern | Direct acting | Distribution e-style | ||||||||||
| Cv | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||||
| L | mm | 40 | 40 | 40 | 52 | 69 | 69 | 73 | 99 | 115 | 120 | 154 |
| H | mm | 75 | 75 | 75 | 90 | 117 | 117 | 124 | 135 | 154 | 162 | 185 |
| Temperature of the medium | -5 ~80℃(-10~130℃) | |||||||||||
| Operating pressure bar | Normally closed: 0~10 Normally open: 0~6 | |||||||||||
| Max compression resistance | 12 | |||||||||||
| Bar | ||||||||||||
| Voltage | 220V AC/50HZ 22VA; 110V AC/50HZ 22VA; DC24V 18W; DC12V 17W; dipping and heaving: ±10%; Solenoid valve in other voltage range can be made to order. | |||||||||||
| Model | 2W-40F | 2W-50F | 2W-15JF | 2W-20JF | 2W-25JF | 2W-32JF | 2W-40JF | 2W-50JF | 2W-32F | 2W-40F | 2W-50F |
| L | 165 | 195 | 106 | 106 | 135 | 142 | 149 | 184 | 140 | 150 | 186 |
| H | 215 | 240 | 141 | 143 | 166 | 204 | 217 | 227 | 198 | 211 | 234 |
| Flange D | 145 | 160 | 96 | 100 | 110 | 135 | 145 | 156 | 135 | 145 | 156 |
| Flange D1 | Φ18 | Φ18 | Φ14 | Φ14 | Φ14 | Φ18 | Φ18 | Φ18 | Φ18 | Φ18 | Φ18 |
| Flange D2 | Φ110 | Φ125 | Φ65 | Φ75 | Φ85 | Φ100 | Φ110 | Φ125 | Φ100 | Φ110 | Φ125 |
| CV | 29 | 48 | 3.6 | 6 | 12 | 24 | 29 | 48 | 24 | 29 | 48 |

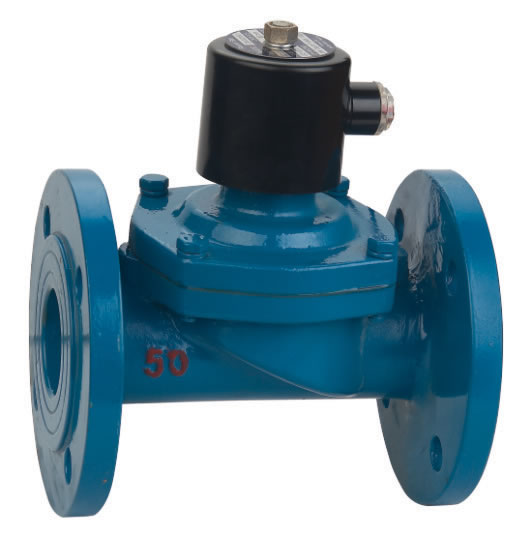

| Materials | Cast iron flange | Stainless steel SUS304 flange, SUS316 (optional) | Copper flange (optional) | ||||||||
| Temperature of the medium | -5~80℃ | ||||||||||
| Operating pressure bar | Normally closed: 0~10 Normally open: 0~6 | ||||||||||
| Max compression resistance bar | 12 | ||||||||||
| Voltage | 220V AC/50HZ 22VA; 110V AC/50HZ 22VA; DC24V 18W; DC12V 17W; voltage range: ±10%; Solenoid valve in other voltage range can be made to order. | ||||||||||
