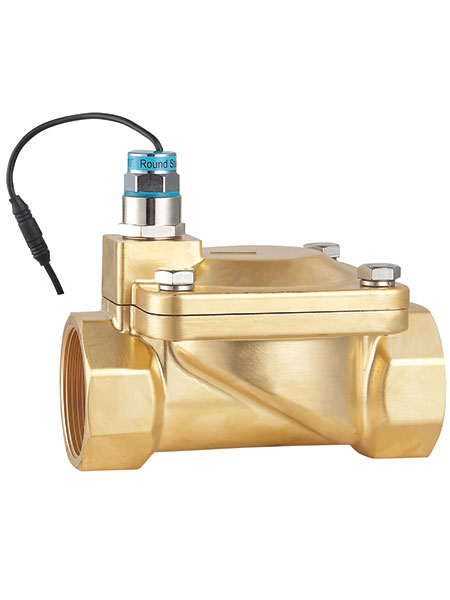

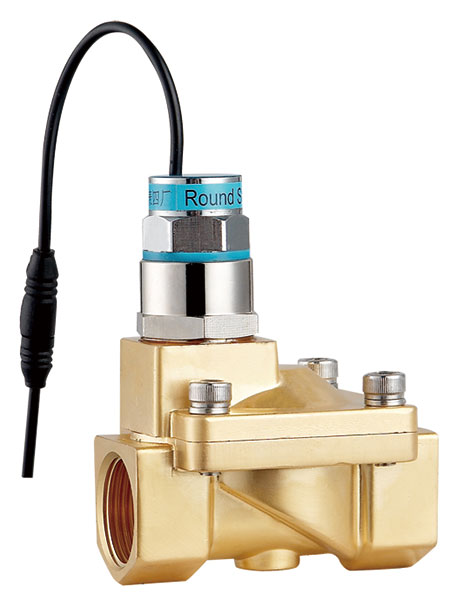

RSZ series 2-way bistable self-sustaining pulse solenoid valve 3/8＂～ 2＂
Widely used in water-saving irrigation, automatic induction sanitary ware, landscaping, automatic irrigation, drip irrigation and other automation control.
working medium：Air water liquid
medium temperature：-5～80℃
Working type：direct current pulse type(NC )
valvebody material：Brass SS316
sealing material：NBR
interface：G thread NPT thread
working voltage：DC2.5～6.5V IP67
coil resistance：25Ω
min current：190mA
pulse width：≥10ms
| RSZ | - | 25 | - | J | - | T | - | voltage |
| | | | | | | | | | | ||||
| model | thread code | blank：brass | blank：G thread | DC6V(by default) | ||||
| 15：1/2＂ | J：SS316 | T：NPT thread | 9V 12V 24V can be customized | |||||
| 20：3/4＂ | ||||||||
| 25：1＂ | ||||||||
| 32：11/4＂ | ||||||||
| 40：11/2＂ | ||||||||
| 50：2＂ |
| model | Orifice (mm ) | interface | Cv | Working pressure (bar) | A×B×C (mm ) | Normal order code | Weight(Kg) |
| Voltage DC6V Copper body G thread | |||||||
| RSZ - 10 | 13 | 3/8＂ | 3.5 | 0.3～8 | 66×48×94 | RSZ–10 - DC6V | 0.5 |
| RSZ - 15 | 13 | 1/2＂ | 3.5 | 0.3～8 | 66×48×94 | RSZ–15 - DC6V | 0.5 |
| RSZ - 20 | 20 | 3/4＂ | 7.6 | 0.3～8 | 75×58×100 | RSZ–20 - DC6V | 0.65 |
| RSZ - 25 | 25 | 1＂ | 12 | 0.3～8 | 96×69×107 | RSZ–25 - DC6V | 1.2 |
| RSZ - 32 | 32 | 11/4＂ | 20 | 0.3～8 | 131×96×132 | RSZ–25 - DC6V | 2.6 |
| RSZ - 40 | 40 | 11/2＂ | 30 | 0.3～8 | 131×96×132 | RSZ–40 - DC6V | 2.4 |
| RSZ - 50 | 50 | 2＂ | 48 | 0.3～8 | 165×120×147 | RSZ–50 - DC6V | 3.7 |

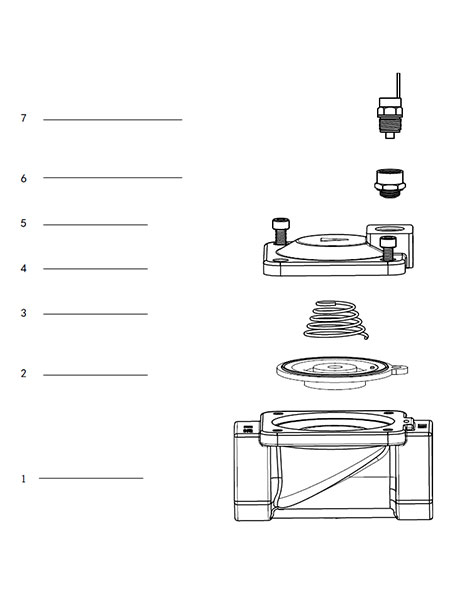

| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| name | valvebody | diaphragm | spring | Valve cover | screw | Transform part | latching pulse coil |
