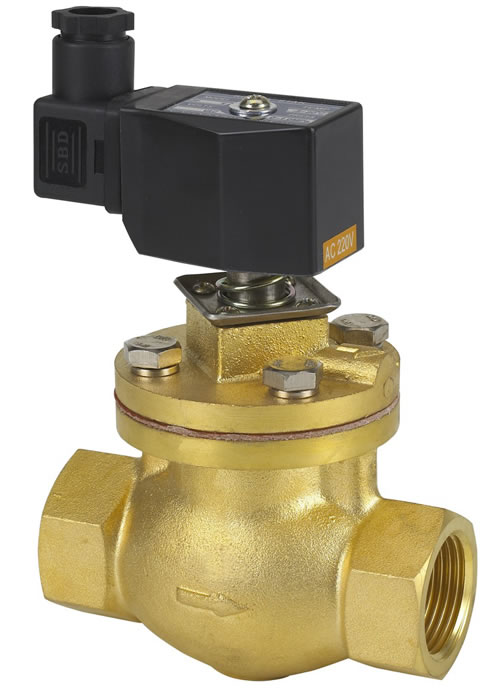

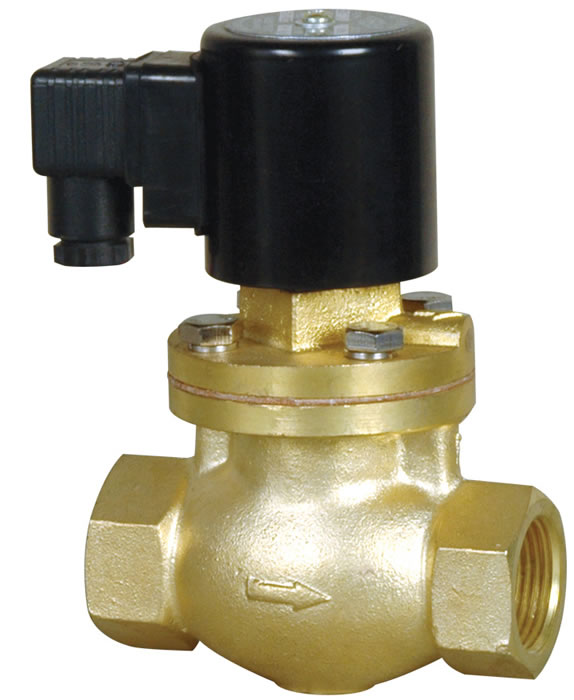

Features of ZCLF Steam Solenoid Valve
1. The ZCLF steam solenoid valve is a valve for use with steam, liquid, gas, and oil.
2. The temperature of the medium is between -5 and 180℃.
3. The acting pattern: pilot type.
4. Working pressure: normally closed: 0.4-10bar.
5. The ZCLF steam solenoid valve is sealed by the PTFE membrane.
6. Protection degree of the coils: ironclad coil: IP54.
Application of ZCLF Steam Solenoid Valve
The ZCLF steam solenoid valve is used in the steam pipe of heaters, radiators, driers, bleaching and dyeing machines, etc. It uses the automatic or long distance switch to realize the automatic temperature control.
Configurations of ZCLF Steam Solenoid Valve
1. The ZCLF steam solenoid valve uses the structure of second opening solenoid valve in pilot type. It uses third opening solenoid valve when the DN is more than 100. It features small volume and power and excellent heat insulation and buffer between the main valve and pilot valve.
2. Using the heat and corrosion resistance materials and PVF piston seal, the ZCLF steam solenoid valve features high performance and a long lifetime.
3. Model: normally closed.

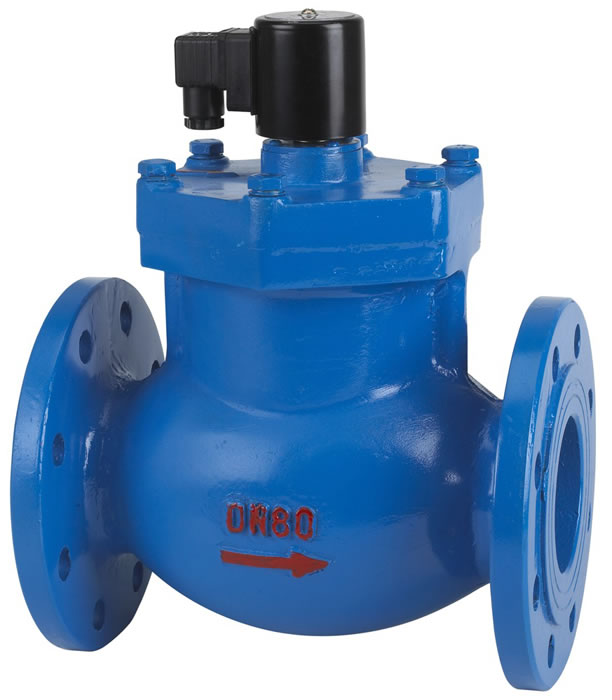

| Model | ZCLF-15 | ZCLF-20 | ZCLF-25 | ZCLF-32 | ZCLF-40 | ZCLF-50 | ZCLF-40CF | ZCLF-50CF | ZCLF-65CF | ZCLF-80CF | ZCLF-100CF | |
| G Connection | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" | Flange 1½" | Flange 2" | Flange 2½" | Flange 3" | Flange 4" | |
| Orifice Size | mm | 15 | 20 | 25 | 32 | 40 | 40 | 40 | 50 | 65 | 80 | 100 |
| Cv Value | 3.7 | 7 | 11 | 18 | 24 | 35 | 24 | 35 | 53 | 82 | 128 | |
| L | mm | 80 | 100 | 110 | 135.5 | 131 | 141 | 196 | 205 | 240 | 268 | 340 |
| H | mm | 150 | 156 | 165 | 192 | 200 | 210 | 173 | 214 | 320 | 334 | 362 |
| H1 | mm | 129 | 130 | 137 | 157 | 165 | 170 | 147 | 196 | 228 | 238 | 254 |
| Medium temperature ℃ | -5 ~ 180 ℃ | |||||||||||
| Pressure | bar | 0.4 ~ 10 bar | ||||||||||
| Power | AC: 220V~AC: 230V/50-60HZ 41VA; AC110 ~AC: 120V/50-60HZ 14VA; DC24 36 W; DC12 24W; Range: ±10% | |||||||||||
YUYAO NO.4 INSTRUMENT FACTORY is a China-based steam solenoid valve manufacturer and supplier. We offer steam solenoid valve, low power solenoid valve, plastic solenoid valve and so on. Our high quality products are offered at competitive prices. We can complete the full chain of manufacturing coffee pot solenoid valve, liquid mini solenoid valve, etc. right here in China. Our lower manufacturing cost saves your purchasing cost. More details on each of our products are shown on the description page.
