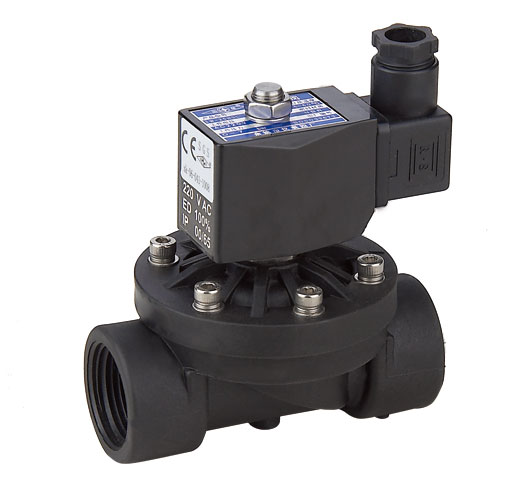

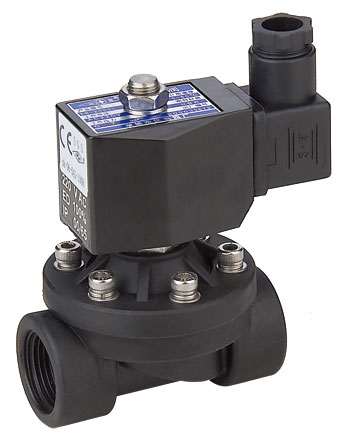

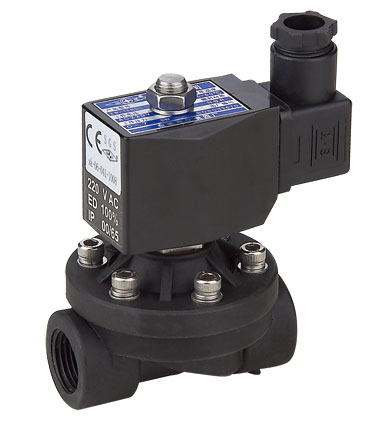

2WSL Plastic Solenoid Valve

2WSL Plastic Solenoid Valve
Feedback Form

Features of 2WSL Plastic Solenoid Valve
1. The 2WSL plastic solenoid valve is a valve for use with water, liquid, gas, etc.
2. The temperature of the medium is between 0 and 50℃.
3. The acting pattern: direct step by step.
4. Working pressure normally closed: 0~7bar, normally open: 0~6 bar.
5. The 2WSL plastic solenoid valve is made with the GFPA.
6. It is sealed by the NBR membrane.
7. Protection degree of the coils: IP65.

Technical Parameters of the 2WSL Plastic Solenoid Valve (Normally Closed)
Model 2W-15SL 2W-20SL 2W-25SL
Screw thread NPT 1/2" 3/4" 1"
Diameter mm 15 20 25
Cv 4.8 7.6 12
L mm 74 70 87
H mm 115 115 125
Temperature of medium -5 -50℃
Working pressure Bar Normally closed: 0-7 Normally open: 0-6
Voltage 220V AC/50HZ 22VA; DC24 18W
Solenoid valve in other voltage type can be made to order.

Note: Epoxy encapsulation coil with low power can be made to order.  This kind of coil can be used in extreme conditions like rain and sunlight.  Model: YSB.  Power: 3W.  Photo can refer to YSB-50.

YUYAO NO.4 INSTRUMENT FACTORY is a China-based plastic solenoid valve manufacturer and supplier. We offer plastic solenoid valve, liquid solenoid valve, water cooler solenoid valve and so on. Our high quality products are offered at competitive prices. We can complete the full chain of manufacturing irons solenoid valve, exhaust solenoid valve, etc. right here in China. Our lower manufacturing cost saves your purchasing cost. More details on each of our products are shown on the description page.
