Features of PS Steam Solenoid Valve
1. The PS steam solenoid valve is a valve for use with steam, liquid, gas, and oil.
2. The temperature of the medium is between -5 and 180℃.
3. The acting pattern: pilot type.
4. Working pressure: normally closed: 0.4-16bar, normally open: 0.4-10bar.

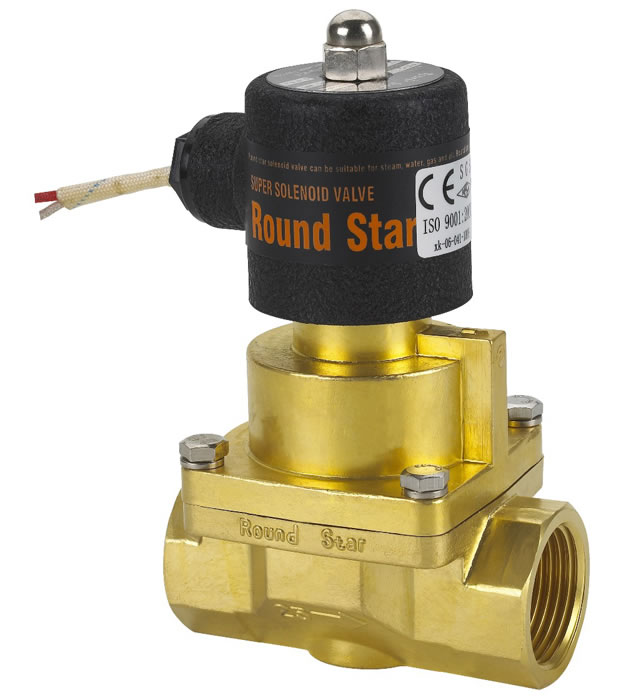

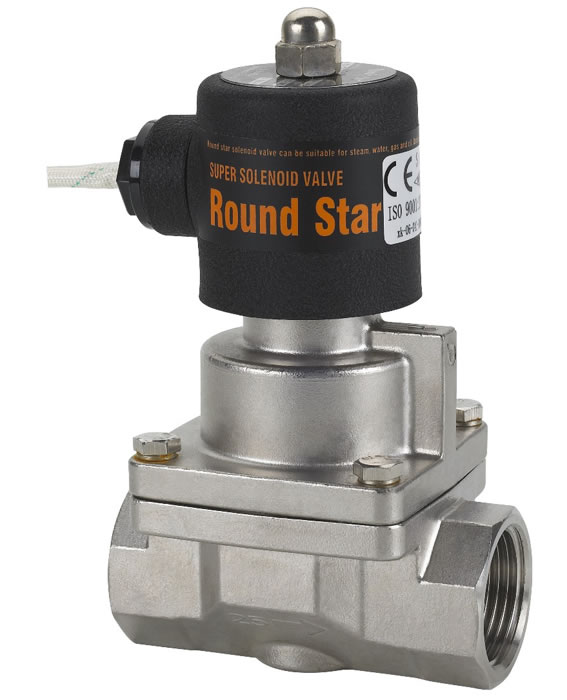

5. The PS steam solenoid valve is made with forged brass, precision casting stainless steel or cast brass.
6. It is sealed by the PTFE membrane.

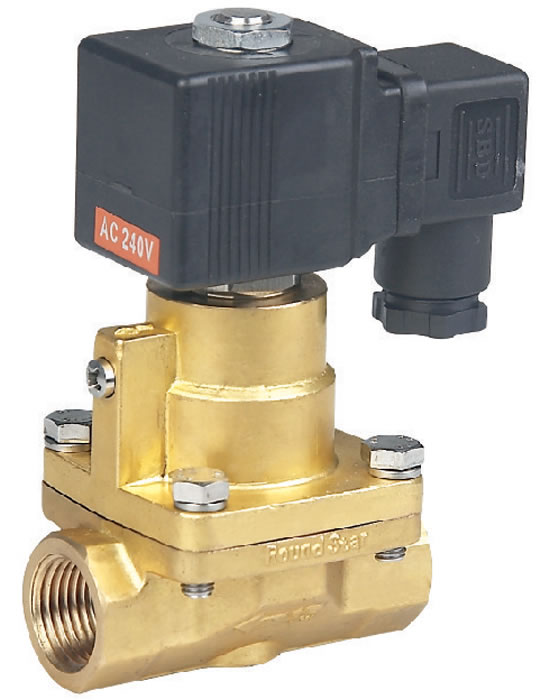

7. Protection degree of the coils: encapsulate coil: IP65, ironclad coil: IP54.
Special Orders for PS Steam Solenoid Valve
We also offer the solenoid valve with special specifications.
1. For use with hot water or constant temperature medium, the solenoid valve can use the VITON membrane to seal. You should mark a V on the order. The temperature of the medium can reach 150℃.
2. If you need a solenoid valve with 25bar working pressure, mention it on the order.
3. Heavy caliber: ф40~ф65. We offer the cast iron coupling flange to joint the solenoid valve, stainless steel valve deck and internals.
| Model | PS-15 | PS-20 | PS-25 | PS-32 | PS-40 | PS-50 | PS-25F | PS-32F | PS-40F | PS-50F | PS-40F | PS-50F | PS-65F | PS-15JF | PS-20JF | PS-25JF | PS-32JF | PS-40JF | PS-50JF |

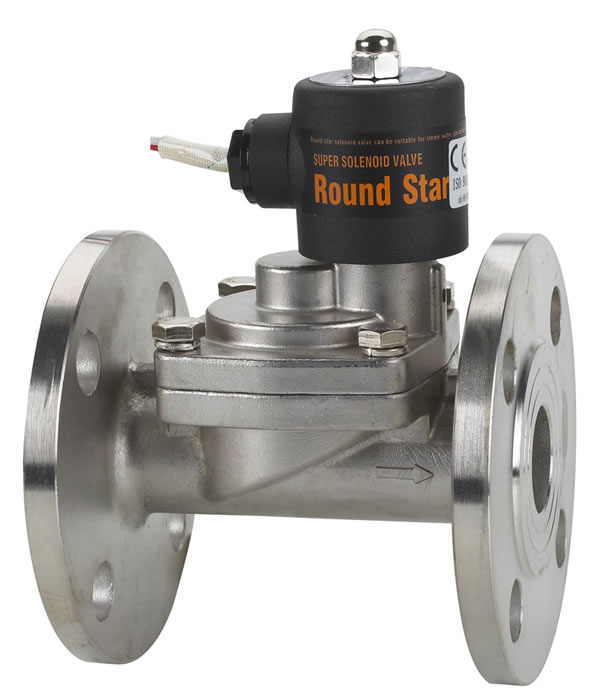

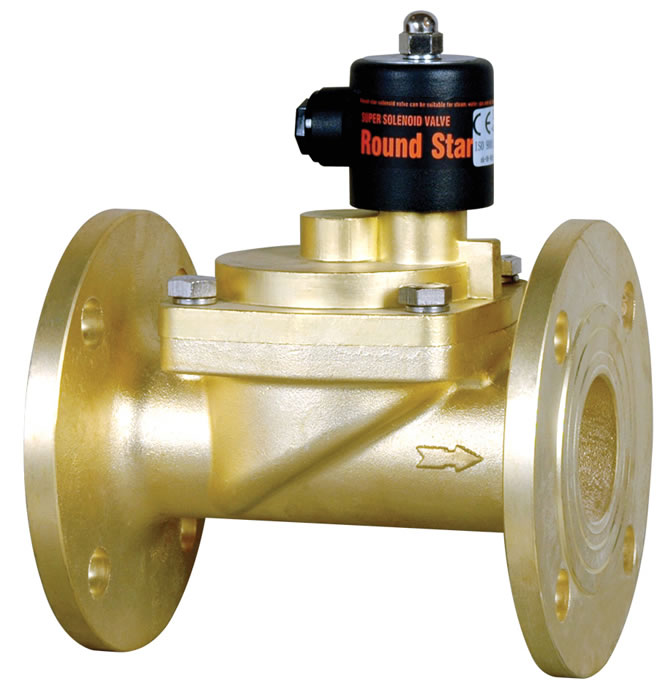

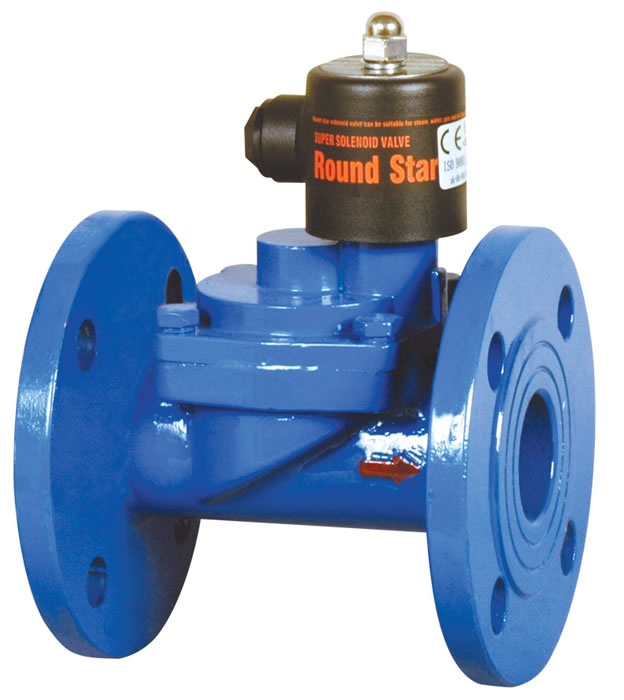

| Joint | G1/2 | G3/4 | G1 | G11/4 | G11/2 | G2 | Copper flanged joint | Cast iron flanged joint | Stainless steel flanged joint | ||||||||||
| Diameter | 15 | 20 | 25 | 32 | 40 | 50 | 25 | 32 | 40 | 50 | 40 | 50 | 65 | 15 | 20 | 25 | 32 | 40 | 50 |
| CV | 4.5 | 7.6 | 12 | 22 | 30 | 48 | 12 | 22 | 30 | 48 | 30 | 48 | 56 | 4.5 | 7.6 | 12 | 22 | 30 | 48 |
| L mm | 70 | 74 | 92 | 110 | 122 | 160 | 118 | 140 | 150 | 185 | 150 | 185 | 256 | 106 | 106 | 135 | 140 | 148 | 182 |
| H mm | 135 | 142 | 150 | 150 | 155 | 174 | 187 | 204 | 210 | 230 | 210 | 228 | 278 | 165 | 167 | 190 | 201 | 210 | 230 |
| Temperature of medium | -5 ~180℃ | ||||||||||||||||||
| Operating pressure (bar) | Normally closed: 0.4 ~ 16; normally open: 0.4 ~ 12 | ||||||||||||||||||
| Max compression resistance bar | 20 | ||||||||||||||||||
| Voltage | 220VAC/50HZ 22VA; 110 VAC/50HZ 19VA; DC24 10 W; DC12 9W; voltage range: ±10%; The solenoid valve in other voltage range can be made to order. | ||||||||||||||||||
YUYAO NO.4 INSTRUMENT FACTORY is a China-based steam solenoid valve manufacturer and supplier. We offer steam solenoid valve, stainless steel solenoid valve, gas plastic solenoid valve and so on. Our high quality products are offered at competitive prices. We can complete the full chain of manufacturing water cooler solenoid valve, mini solenoid valve, etc. right here in China. Our lower manufacturing cost saves your purchasing cost. More details on each of our products are shown on the description page.
