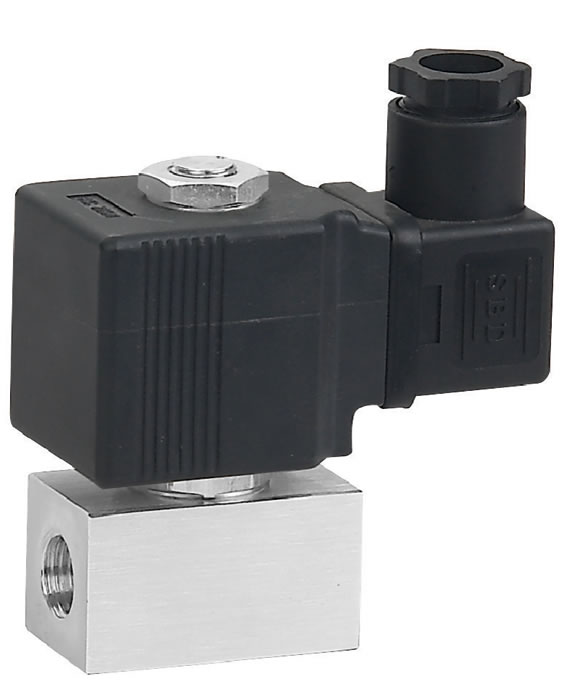

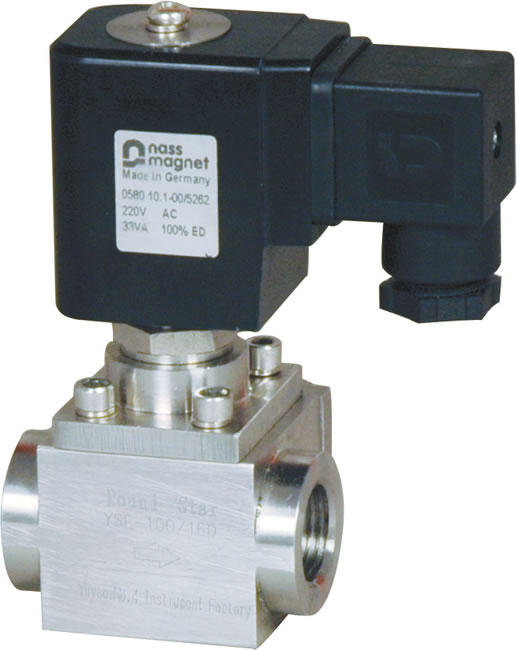

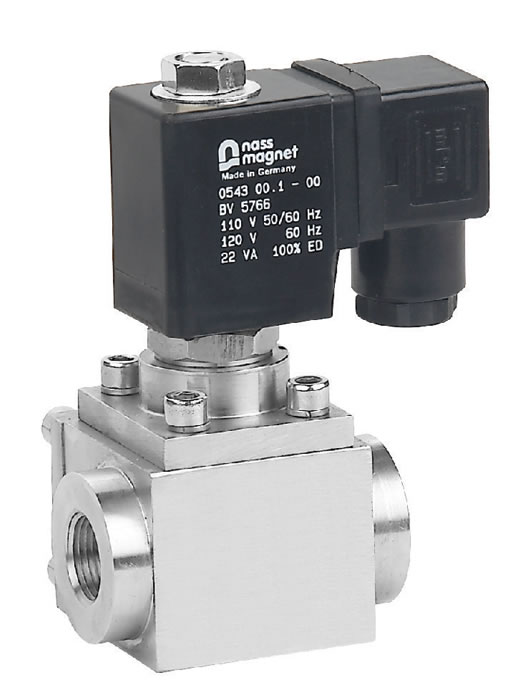

Features of YSE High Pressure Solenoid Valve
1. YSE high pressure solenoid valve is a valve for use with the gas, water and liquid in low viscosity.
2. Operating pattern: normally closed.
3. Voltage range: ±10%
4. Materials: stainless steel
5. Voltage: AC220, AC110, AC36 and DC24V
6. Operating pressure: ≥10MPa
7. YSE high pressure solenoid valve adopts the German NASS coil.
8. Protection degree of the coils: IP65
9. The acting pattern: two position two way.
| Product model | Thread G | Orifice size (mm) | Cv value | L (mm) | H (mm) | Working Pressure (bar) | |
| AC | DC | ||||||
| YSE-1 | 1/4" or 3/8" | 1 | 0.04 | 44 | 98 | 0~250 | 0~200 |
| YSE-1.5 | 1.5 | 0.08 | 44 | 98 | 0~160 | 0~120 | |
| YSE-2 | 2 | 0.15 | 44 | 98 | 0~130 | 0~80 | |
| YSE-2.5 | 2.5 | 0.20 | 44 | 98 | 0~80 | 0~60 | |
| YSE-3 | 3 | 0.25 | 44 | 98 | 0~60 | 0~40 | |
| YSE-10 | 3/8" | 10 | 3.5 | 60 | 125 | 0~160 | 6~120 |
| YSE-15 | 1/2" | 15 | 4.7 | 70 | 138 | 0~160 | 6~120 |
| YSE-20 | 3/4" | 20 | 7 | 80 | 144 | 0~160 | 6~120 |
| YSE-25 | 1" | 25 | 11 | 90 | 154 | 0~160 | 6~120 |
YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturer of high pressure solenoid valve, based in China. We offer various types of products such as high pressure solenoid valve, stainless steel solenoid valve, gas plastic solenoid valve and so on. Our products are high quality and competitively priced. We can complete the full chain of manufacturing steam solenoid valve, plate gas solenoid valve, etc. right here in China. Our lower manufacturing cost can save your purchasing cost. A more detailed description of our product is shown on the page.
