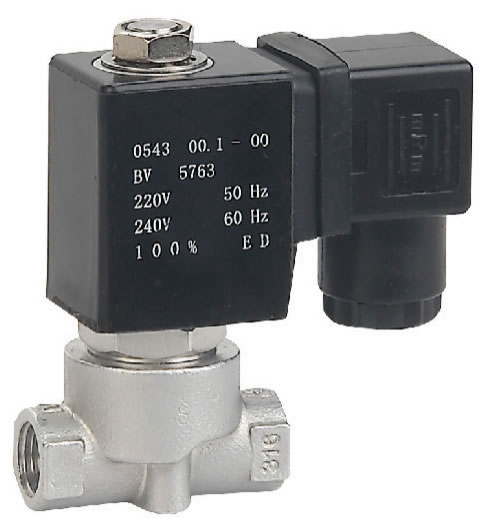

2W-050-08 Gas and Liquid Solenoid Valve

2W-050-08 Gas and Liquid Solenoid Valve
Feedback Form

Features of 2W-050-08 Gas and Liquid Solenoid Valve
1. The 2W-050-08 gas and liquid solenoid valve is a valve for use with water, gas and oil. 2. Medium temperature: -10~100℃.
3. Acting pattern of the 2W-050-08 gas and liquid solenoid valve: direct acting.
4. Working pattern: normally closed.
5. Materials: stainless steel 316.
6. The 2W-050-08 gas and liquid solenoid valve is sealed by the EPDM.
7. Protection degree of the coils: encapsulate coil: IP65.
8. Voltage range: AC -15%~10% DC -10%~10%.

Technical Parameters of the 2W-050-08 Gas and Liquid Solenoid Valve
Model Hole Diameter (mm) Screw Thread G Working Pressure (Bar) Cv Factor L H
(mm) (mm)
2W-050-08 2 G1/4″ 0~12 0.12 43.5 82
3 0~8 0.19
4 0~6 0.30
5 (ever prepared) 0~5 0.38

Note: Please choose the VITON to seal the 2W-050-08 gas and liquid solenoid valve when the medium temperature is as high as 120℃.

YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturer of gas solenoid valve, based in China.  We offer various types of products such as liquid solenoid valve, stainless steel solenoid valve, plastic solenoid valve and so on.  Our products are high quality and competitively priced.  We can complete the full chain of manufacturing exhaust solenoid valve, high pressure solenoid valve, etc. right here in China.  Our lower manufacturing cost can save your purchasing cost.  A more detailed description of our product is shown on the page.
