Features of Plate Gas and Liquid Solenoid Valve
1. The plate gas and liquid solenoid valve is a valve for use with water, gas and oil.
2. It is sealed by the VITON.
3. Medium temperature: -10~120℃.
4. Protection degree of the coils: encapsulate coil: IP65.
5. Acting pattern of the plate gas and liquid solenoid valve: direct acting.
6. Working voltage: AC220V, AC110V, DC24V and DC12V.
7. Materials: brass (HPb59-1).
8. Voltage range: AC -15%~10% DC -10%~10%.

Pictures of Plate Gas and Liquid Solenoid Valve

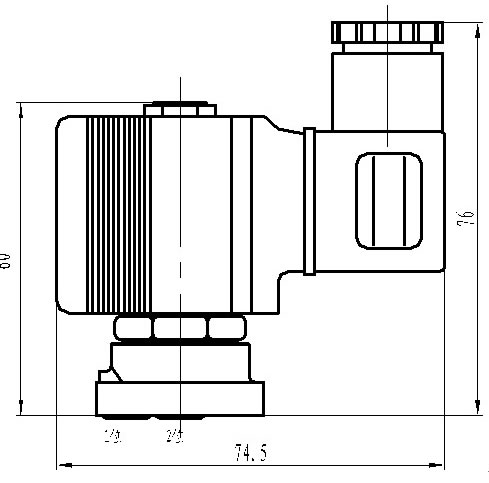

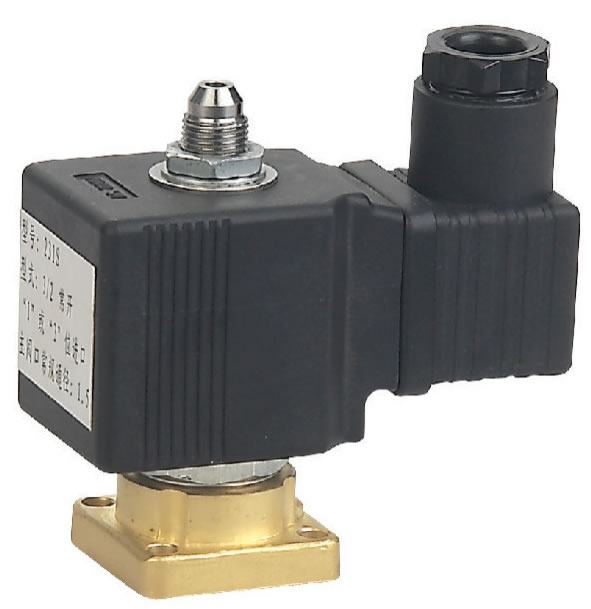

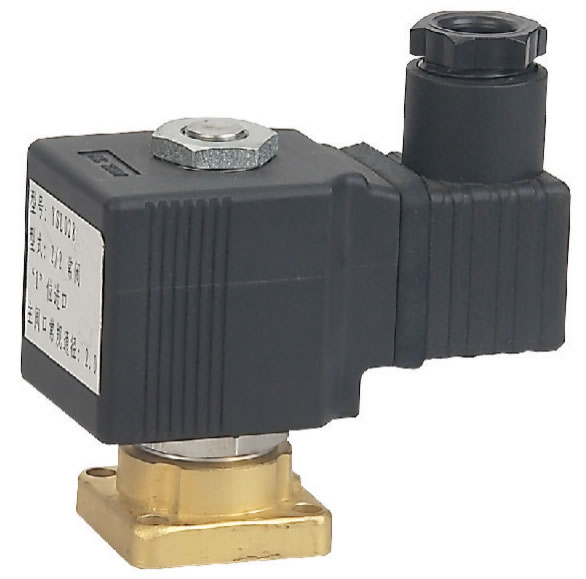

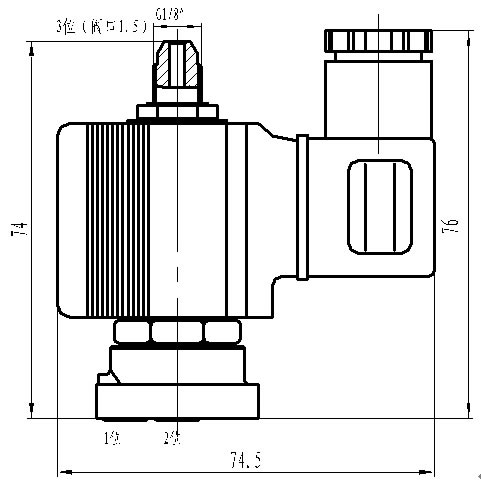

YSL028 YSL028 (two position and two way)	231S 231S (two position and three way, supply hole is optional)

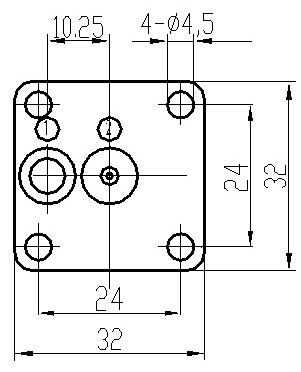

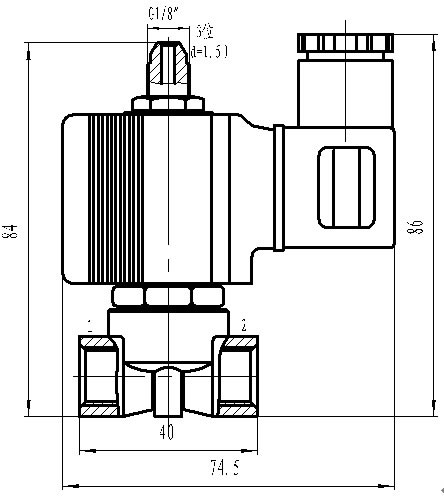

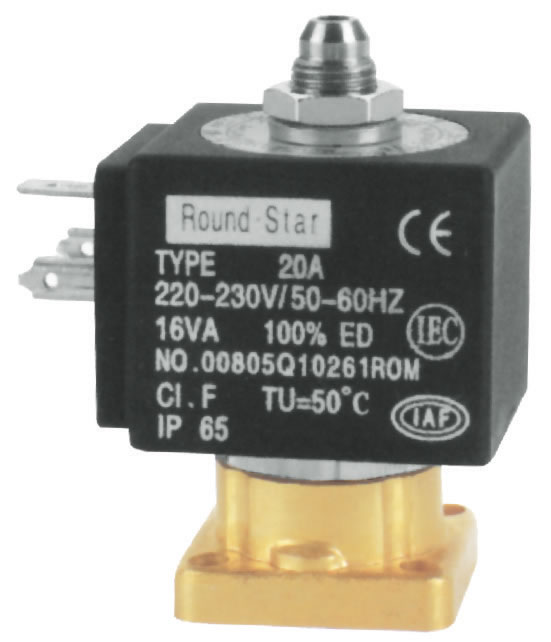

231W 231W (two position and three way)	All the plate type joints are the same.

Technical Parameters of the Plate Gas and Liquid Solenoid Valve

Model	Working Pattern	Hole Diameter (mm)	Working Voltage (Bar)		Cv Factor	Note
			AC	DC
YSL028	Two position and two way (normally closed)	1.5	0~30	0~20	0.06	Supply hole: 1
		2.0	0~25	0~16	0.12
231S	Two position and three way (normally open)	1.5	0~15	0~12	0.06	Supply hole: 1 or 3
	Two position and three way (normally closed)	1.5	0~10	0~10	0.06	Supply hole: 2
		2.0	0~8	0~8	0.12
231W	Two position and three way (normally closed)	1.0	0~10	0~10	0.03	Supply hole: 2
		1.2	0~10	0~10	0.05
		1.5	0~8	0~6	0.06
		2.0	0~8	0~5	0.12
		2.5	0~5	0~3	0.20

YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturer of plate liquid solenoid valve, based in China.  We offer various types of products such as plate gas solenoid valve, low power solenoid valve, water cooler solenoid valve and so on.  Our products are high quality and competitively priced.  We can complete the full chain of manufacturing irons solenoid valve, plastic solenoid valve, etc. right here in China.  Our lower manufacturing cost can save your purchasing cost.  A more detailed description of our product is shown on the page.
