Features of VMI Solenoid Valve
1. The VMI solenoid valve uses the direct acting type.
2. It is small in volume with all the joints in one pipeline and coils insulated with the pipeline.
3. The VMI solenoid valve is used for automatically controlling the cylinder and valve.

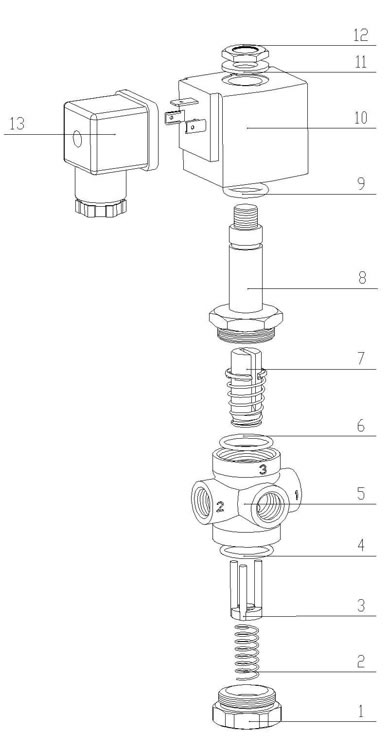

Configurations of the VMI Two Position Three Way Solenoid Valve
  List Name
1 Bottom cover
2 Vice valve core spring
3 Vice valve core group
4 Seal ring
5 Valve
6 Seal ring
7 Movable iron core group
8 Magnetic isolation tubes
9 Vibration damping washer
10 Coil
11 Shim
12 Nut
13 Junction box

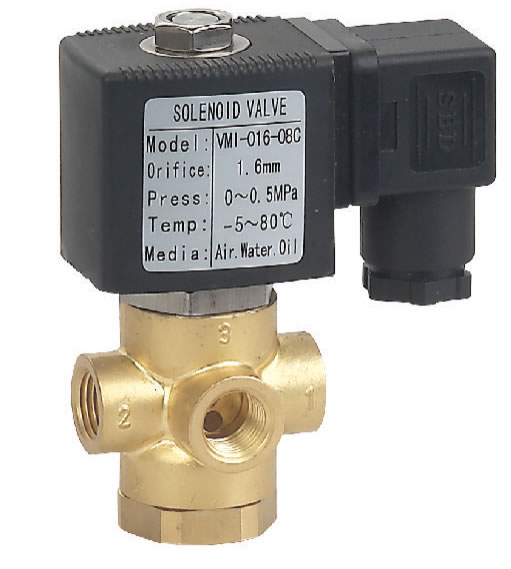

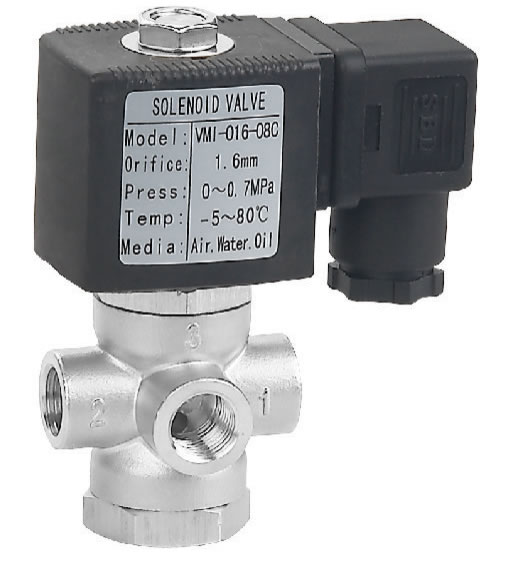

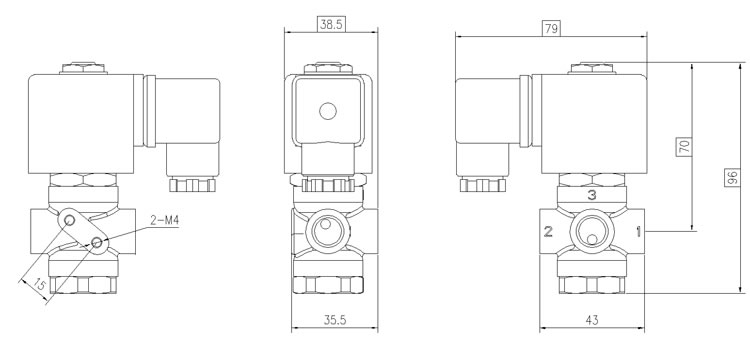

Pictures of the VMI solenoid valve and mounting hole

Technical Parameters of the VMI-A Solenoid Valve (Normally Closed)

Joint G1/4"
Diameter mm 1.6 2 2.5 3 4
CV factor 0.07 0.14 0.21 0.25 0.35
Working pressure (Mpa) AC 0~1.3 0~1.1 0~0.9 0~0.6 0~0.35
DC 0~1.1 0~0.9 0~0.7 0~0.4 0~0.2
Medium and temperature Water, air and oil (less than 20CST)/ -5~80℃
Coil power AC220V 16VA, other voltage range is optional.
DC24V 16W, other voltage range is optional.
Materials Forged copper and stainless steel SUS304

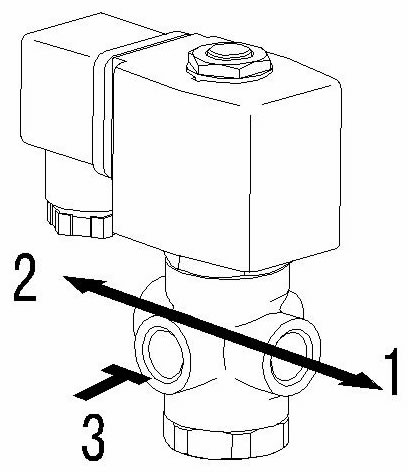

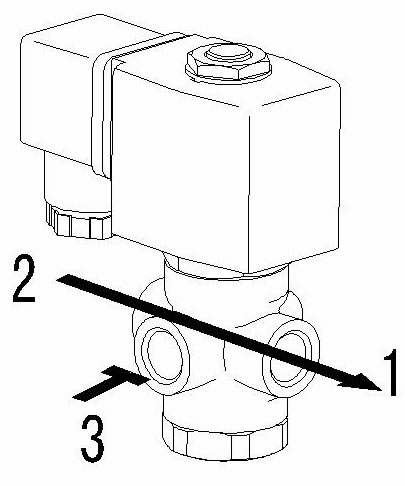

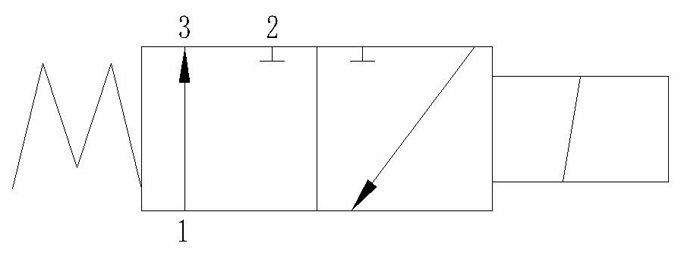

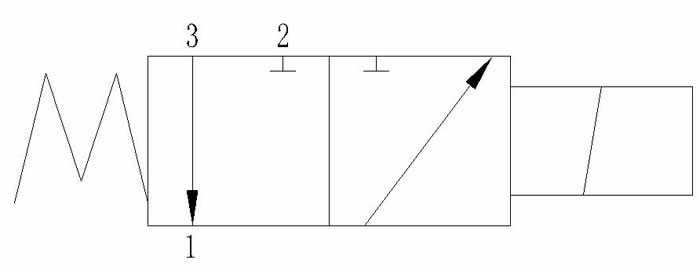

VMI-A Solenoid Valve Power On and Power Off Flow Diagram (Normally Closed)

Supply hole: 2

Technical Parameters of the VMI-B Solenoid Valve (Normally Open)

Joint G1/4"
Diameter mm 1.6 2 2.5 3 4
CV factor 0.07 0.14 0.21 0.25 0.35
Working pressure (Mpa) AC 0~1.3 0~1.1 0~0.9 0~0.6 0~0.35
DC 0~1.1 0~0.9 0~0.7 0~0.4 0~0.2
Medium and temperature Water, air and oil (less than 20CST)/ -5~80℃
Coil power AC220V 16VA, other voltage range is optional.
DC24V 16W, other voltage range is optional.
Materials Forged copper and stainless steel SUS304.

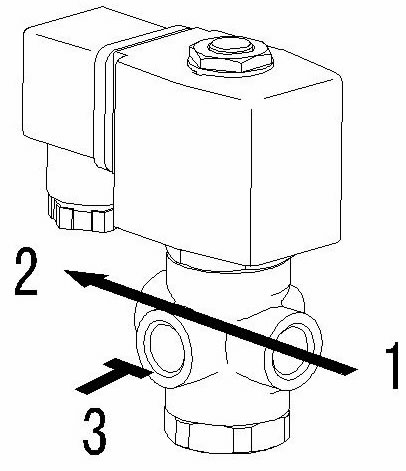

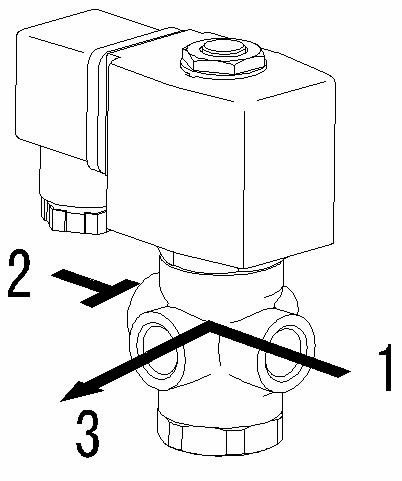

VMI-B solenoid valve power on and power off flow diagram (normally open)

Supply hole: 3

Technical Parameters of Universal Type VMI-C Solenoid Valve

Joint G1/4"
Diameter mm 1.6 2 2.5 3 4
CV factor 0.07 0.14 0.21 0.25 0.35
Working pressure (Mpa) AC 0~0.7 0~0.5 0~0.4 0~0.25 0~0.17
DC 0~0.5 0~0.4 0~0.3 0~0.2 0~0.08
Medium and temperature Water, air and oil (less than 20CST)/ -5~80℃
Power AC220V 16VA, other voltage range is optional.
DC24V 16W, other voltage range is optional.
Materials Forged copper and stainless steel SUS304.

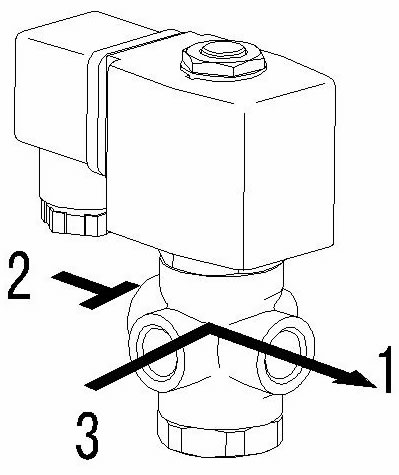

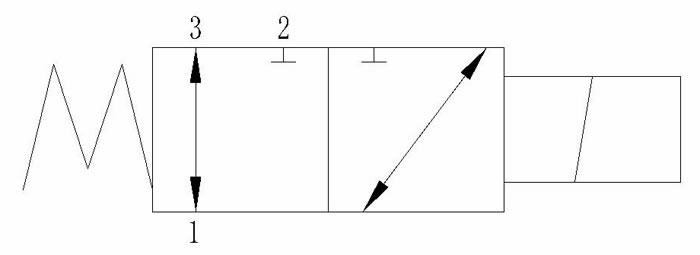

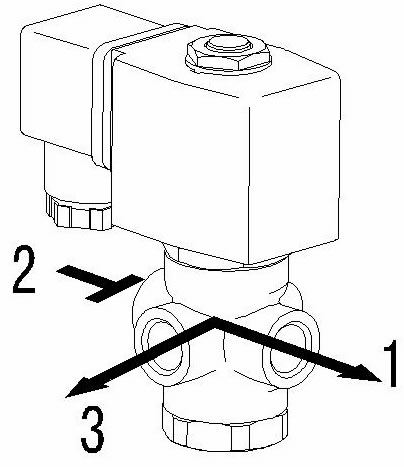

VMI-C universal type solenoid valve power on and power off flow diagram

Supply Hole: All the holes
