Applicable Medium: fluid, gas and oil (≤20cst) etc.
Medium Temperature: -5 ~ 180℃
Action Mode: pilot-operated
Working Pressure: 0.5~50bar (under normally closed conditions)
Valve Material: stainless steel (precision casting)
Seal Material: PTFE
Features

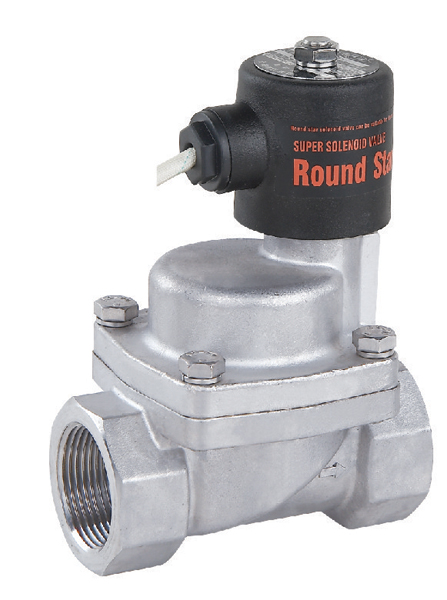

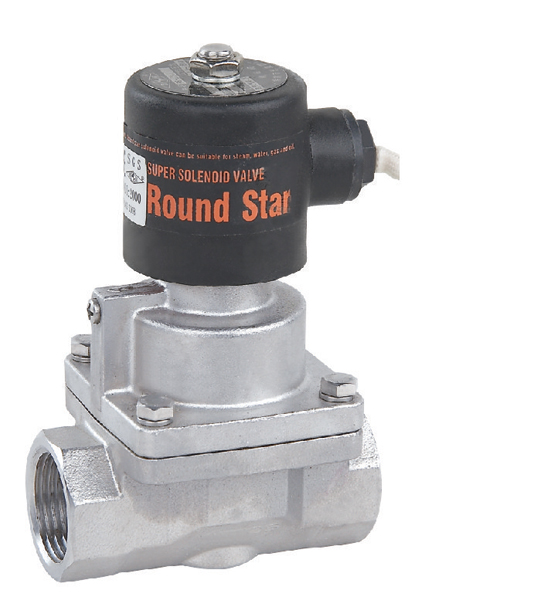

1. The YSP high pressure solenoid valve is compatible with various media including fluid, gas and oil (≤20cst).
2. It works with the pilot-operated action mode.
3. The stainless steel SUS304 is made into the valve.
4. With sophisticated structure and professional technique, it features stable performance and high reliability.
Model | Connector G | Diameter | CV Value | Length (mm) | Height (mm) | Working Pressure(bar) |
YSP-15 | 1/2 | 15 | 4.5 | 70 | 135 | AC:0.5~50 DC:0.5~40 |
YSP-20 | 3/4 | 20 | 7.6 | 75 | 142 | |
YSP-25 | 1 | 25 | 12 | 94 | 152 | |
YSP-32 | 11/4 | 32 | 22 | 110 | 166 | |
YSP-40 | 11/2 | 40 | 30 | 122 | 170 | |
YSP-50 | 2 | 50 | 48 | 160 | 184 | |

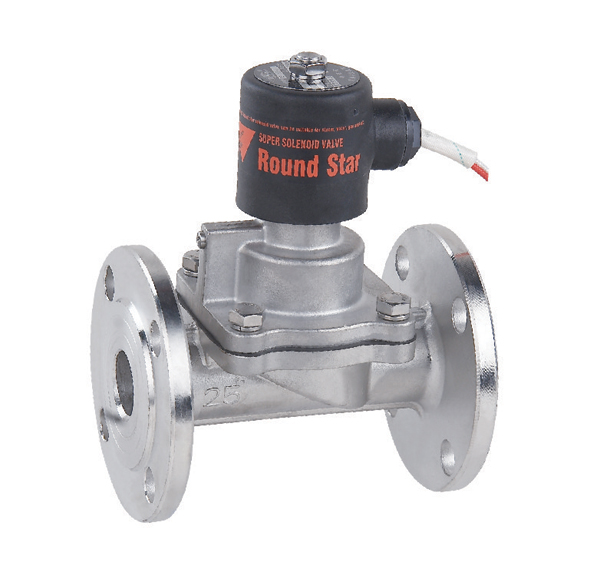

YSP-32F Stainless Flange | 2 | 32 | 22 | 140 | 218 | |
YSP-40F Stainless Flange | 11/2 | 40 | 30 | 148 | 228 | |
YSP-50F Stainless Flange | 2 | 50 | 48 | 182 | 243 |
